UTG01619P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 19POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

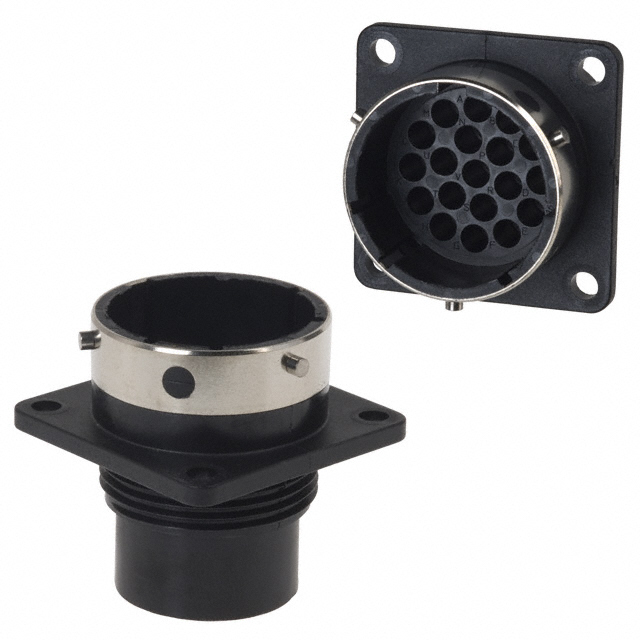

UTG01619P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 19POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG01619P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	16
Shielding	Unshielded
Type	For Male Pins

UTG01 Series

Part	Type	Contact Type	Contact Shape	Number of Positions	Note	Fastening Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Connector Type	Insert Material	Mounting Feature	Housing Color	Contact Size	Material Flammability Rating	Ingress Protection	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
Souriau-Sunbank by Eaton UTG0128P	For Male Pins	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG01412P	For Male Pins	Crimp	Circular	12	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-12	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG0148PH	For Male Pins	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver		UL94 V-0	IP65 - Dust Tight Water Resistant	12 (4) 16 (4)
Souriau-Sunbank by Eaton UTG0148S	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver		UL94 V-0		12 (4) 16 (4)
Souriau-Sunbank by Eaton UTG012-8S	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG012-8SH	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG010-4S	For Female Sockets	Crimp	Circular	4	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	10-4	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG01619P	For Male Pins	Crimp	Circular	19	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0			16	19
Souriau-Sunbank by Eaton UTG018-23P	For Male Pins	Crimp	Circular	23	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0					18	23
Souriau-Sunbank by Eaton UTG01619S	For Female Sockets	Crimp	Circular	19	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0			16	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.48
		10	$ 9.43
		25	$ 8.88
		50	$ 8.65
		100	$ 8.43
		250	$ 7.52
		500	$ 7.06
		1000	$ 6.24

Description

General part information

UTG01 Series

19 Position Circular Connector Receptacle Housing Panel Mount
