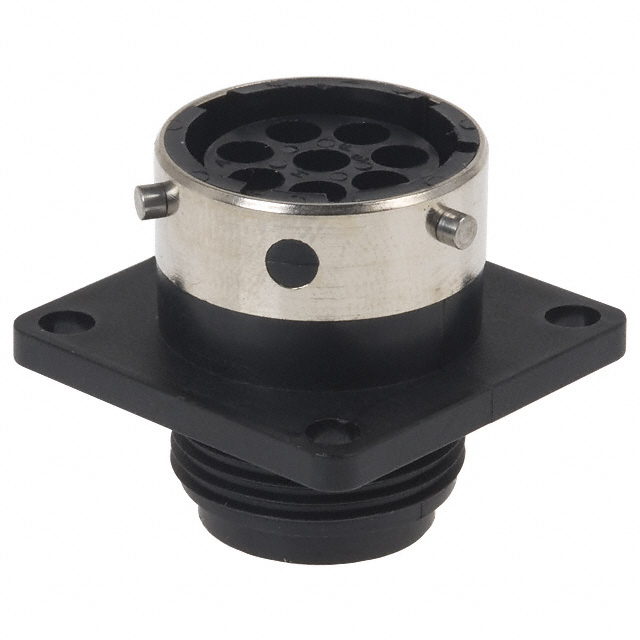

UTG012-8S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG FMALE 8POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UTG012-8S

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG FMALE 8POS PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTG012-8S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black, Silver
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Shell Size - Insert	12-8
Shielding	Unshielded
Type	For Female Sockets

UTG01 Series

Part	Type	Contact Type	Contact Shape	Number of Positions	Note	Fastening Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Connector Type	Insert Material	Mounting Feature	Housing Color	Contact Size	Material Flammability Rating	Ingress Protection	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]
Souriau-Sunbank by Eaton UTG0128P	For Male Pins	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG01412P	For Male Pins	Crimp	Circular	12	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-12	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG0148PH	For Male Pins	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver		UL94 V-0	IP65 - Dust Tight Water Resistant	12 (4) 16 (4)
Souriau-Sunbank by Eaton UTG0148S	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	14-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver		UL94 V-0		12 (4) 16 (4)
Souriau-Sunbank by Eaton UTG012-8S	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG012-8SH	For Female Sockets	Crimp	Circular	8	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	12-8	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0	IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTG010-4S	For Female Sockets	Crimp	Circular	4	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N	10-4	Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0
Souriau-Sunbank by Eaton UTG01619P	For Male Pins	Crimp	Circular	19	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0			16	19
Souriau-Sunbank by Eaton UTG018-23P	For Male Pins	Crimp	Circular	23	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0					18	23
Souriau-Sunbank by Eaton UTG01619S	For Female Sockets	Crimp	Circular	19	Contacts Not Included	Bayonet Lock	Unshielded	-55 °C	125 °C	N		Receptacle Housing	Thermoplastic Glass Filled	Flange	Black Silver	16	UL94 V-0			16	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.20
		10	$ 9.18
		25	$ 8.65
		50	$ 8.42
		100	$ 8.20
		250	$ 7.32
		500	$ 6.87
		1000	$ 6.07

Description

General part information

UTG01 Series

8 Position Circular Connector Receptacle Housing Panel Mount
