Technical Specifications
Parameters and characteristics for this part
| Specification | 4231-T110-K0F2H-8A |
|---|---|
| Actuator Type | Lever |
| Approval Agency | UL Class I Div 2, CSA C22.2 No 213, UL1077 |
| Breaker Type | Magnetic (Hydraulic Delay) |
| Current Rating (Amps) | 8 A |
| Illumination | None |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 288.62 | |
Description
General part information
4231-T Series

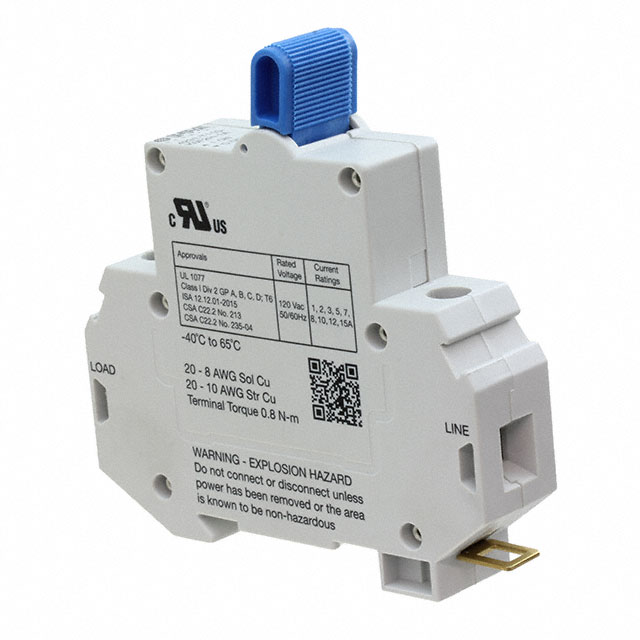

Circuit Breakers 1077,C1D2,1P,DN,120VAC,8A
Documents
Technical documentation and resources
