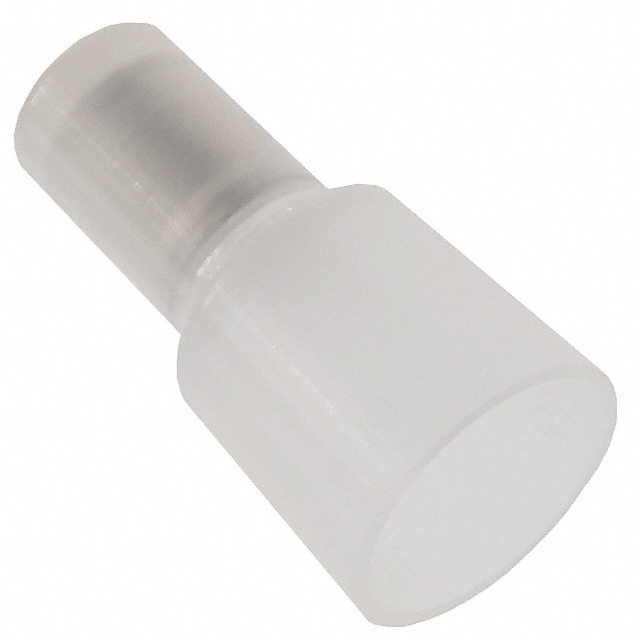

0191600169

Obsolete

Molex

CONN SPLICE 10-16AWG 100/BAG

Search across all available documentation for this part.

Obsolete

Molex

CONN SPLICE 10-16AWG 100/BAG

Technical Specifications

Parameters and characteristics for this part

Specification	0191600169

Color	Natural
Insulation	Fully Insulated
Number of Wire Entries	Varies by Wire Size
Terminal Type	Single Opening, Closed End, Butt Splice
Termination	Crimp
Wire Gauge [Max]	16 AWG
Wire Gauge [Min]	10 AWG

Part	Color	Number of Wire Entries	Insulation	Terminal Type	Termination	Wire Gauge	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries [custom]
Molex 0191600172	Natural	Varies by Wire Size	Fully Insulated	Butt Splice Closed End Single Opening	Crimp	8 AWG
Molex 0191600028	Natural	Varies by Wire Size	Fully Insulated	Butt Splice Closed End Individual Openings	Crimp	8 AWG
Molex 0191600022		Varies by Wire Size	Non-Insulated	Butt Splice Closed End Single Opening	Crimp		12 AWG	22 AWG
Molex 0191600070	Natural	Varies by Wire Size	Fully Insulated	Butt Splice Closed End Individual Openings	Crimp		14 AWG	22 AWG
Molex 0191600044	Yellow		Fully Insulated	Twist On Wire Cap Wing	Twist On		10 AWG	18 AWG	1
Molex 0191600071	Natural	Varies by Wire Size	Fully Insulated	Butt Splice Closed End Single Opening	Crimp		12 AWG	22 AWG
Molex 0191600045	Red		Fully Insulated	Twist On Wire Cap Wing	Twist On		8 AWG	18 AWG	1
Molex 0191600190		Varies by Wire Size	Fully Insulated	Butt Splice Closed End Single Opening	Crimp		10 AWG	18 AWG
Molex 0191600047	Blue		Fully Insulated	Twist On Wire Cap Wing	Twist On		6 AWG	14 AWG	1
Molex 0191600169	Natural	Varies by Wire Size	Fully Insulated	Butt Splice Closed End Single Opening	Crimp		10 AWG	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminal Butt Splice, Closed End, Single Opening Connector Crimp 10-16 AWG Natural
