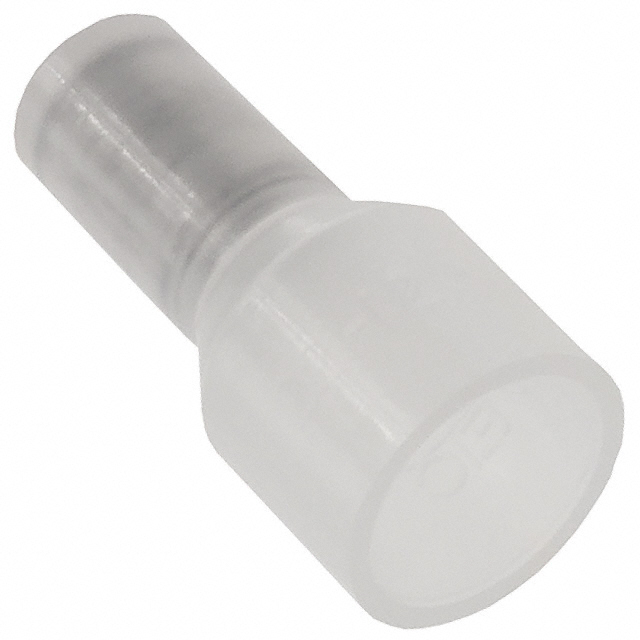

0191600071
ActiveMolex
CONN SPLICE 12-22AWG CRIMP 19160
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0191600071
ActiveMolex
CONN SPLICE 12-22AWG CRIMP 19160
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0191600071 |
|---|---|
| Color | Natural |
| Insulation | Fully Insulated |
| Number of Wire Entries | Varies by Wire Size |
| Terminal Type | Single Opening, Closed End, Butt Splice |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.27 | |||
| Tape & Reel (TR) | 500 | $ 0.27 | ||
| 1000 | $ 0.21 | |||
| 1500 | $ 0.20 | |||
| 2500 | $ 0.20 | |||
| 5000 | $ 0.18 | |||
| 12500 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
| 50000 | $ 0.16 | |||
Description
General part information
019160 Series
Terminal Butt Splice, Closed End, Single Opening Connector Crimp 12-22 AWG Natural
