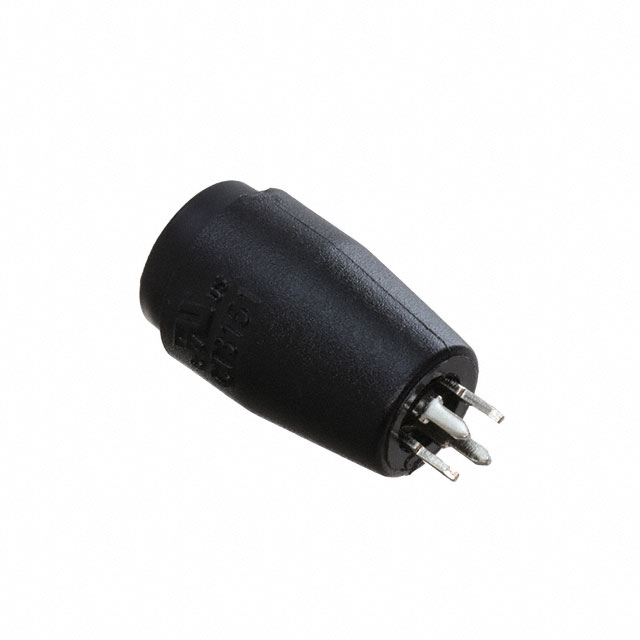

CT3151V1-0

Active

Cal Test Electronics

SAFETY JACK 4MM HOR PCB BLK

Search across all available documentation for this part.

Active

Cal Test Electronics

SAFETY JACK 4MM HOR PCB BLK

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Insulation	Contact Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Termination	Type	Color	Mounting Type	Plug/Mating Plug Diameter
Cal Test Electronics CT3151SP-7	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Purple	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-9	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	White	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-0	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Black	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-8	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Gray	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151V1-0	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder Lug	Banana Jack	Black	Panel Mount Through Hole	Standard Banana
Cal Test Electronics CT3151V1-2	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder Lug	Banana Jack	Red	Panel Mount Through Hole	Standard Banana

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45

General part information

Banana Jack Connector Standard Banana Solder Lug Black
