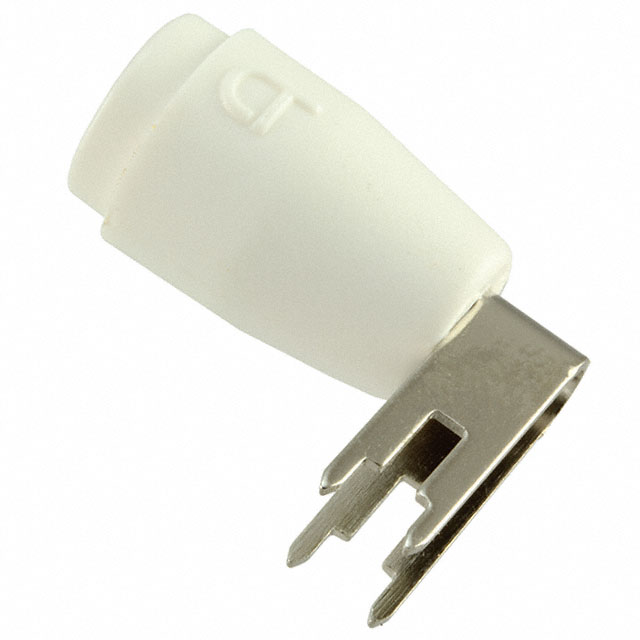

CT3151SP-9

Active

Cal Test Electronics

CONN BANANA JACK SOLDER WHITE

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK SOLDER WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	CT3151SP-9

Body Material	Polyamide (PA66), Nylon 6/6
Color	White
Contact Finish	Nickel
Contact Material	Brass
Gender	Female
Insulation	Mating End Insulated
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solder
Type	Banana Jack

Part	Contact Finish	Insulation	Contact Material	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Termination	Type	Color	Mounting Type	Plug/Mating Plug Diameter
Cal Test Electronics CT3151SP-7	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Purple	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-9	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	White	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-0	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Black	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151SP-8	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder	Banana Jack	Gray	Panel Mount Right Angle Through Hole	Standard Banana
Cal Test Electronics CT3151V1-0	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder Lug	Banana Jack	Black	Panel Mount Through Hole	Standard Banana
Cal Test Electronics CT3151V1-2	Nickel	Mating End Insulated	Brass	Female	-20 C	80 C	Polyamide (PA66) Nylon 6/6	Solder Lug	Banana Jack	Red	Panel Mount Through Hole	Standard Banana

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.45

General part information

Banana Jack Connector Standard Banana Solder White
