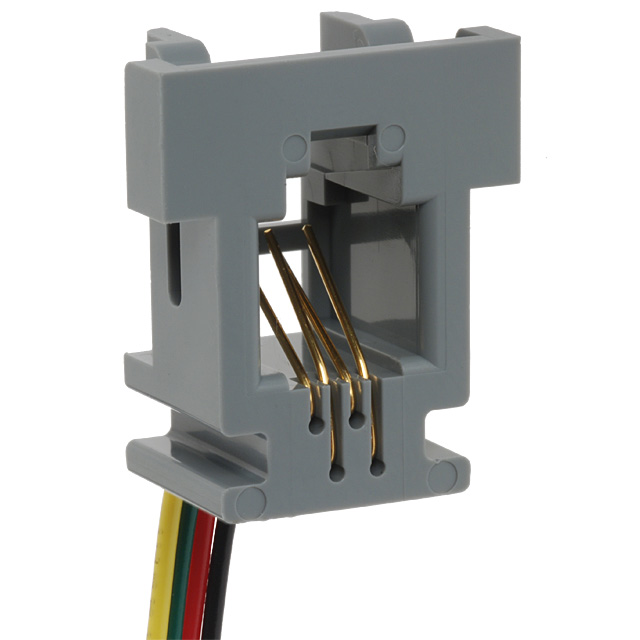

TM1R-616B44-35S-150M

Hirose Electric USA, Inc.

CONN MOD JACK 4P4C UNSHIELDED

Search across all available documentation for this part.

Hirose Electric USA, Inc.

CONN MOD JACK 4P4C UNSHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	TM1R-616B44-35S-150M

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Housing Material	Acrylonitrile Butadiene Styrene (ABS)
LED Color	Does Not Contain LED
Number of Ports	1
Number of Positions/Contacts	4p4c
Number of Rows	1
Orientation	User Selectable
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Wire Leads

Part	Connector Type	Housing Material	Termination	Tab Direction	Number of Positions/Contacts	Number of Ports	Contact Material	Mounting Type	Contact Finish	Features	LED Color	Orientation	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows
Hirose Electric USA, Inc. TM1RV647AF88-35S-150M	Jack	Acrylonitrile Butadiene Styrene (ABS)	Wire Leads	User Selectable	8p8c (RJ45 Ethernet)	1	Phosphor Bronze	Free Hanging (In-Line)	Gold	Panel Stops	Does Not Contain LED	User Selectable	Unshielded	50 µin	1.27 µm	1
Hirose Electric USA, Inc. TM1RV-623K66-35S-150M	Jack	Acrylonitrile Butadiene Styrene (ABS)	Wire Leads	User Selectable	6p6c (RJ11 RJ12 RJ14 RJ25)	1	Phosphor Bronze	Free Hanging (In-Line)	Gold	Panel Stops	Does Not Contain LED	User Selectable	Unshielded	50 µin	1.27 µm	1
Hirose Electric USA, Inc. TM1R-616B44-35S-150M	Jack	Acrylonitrile Butadiene Styrene (ABS)	Wire Leads	User Selectable	4p4c	1	Phosphor Bronze		Gold		Does Not Contain LED	User Selectable	Unshielded			1
Hirose Electric USA, Inc. TM1R-616M44-35S-150AM	Jack	Acrylonitrile Butadiene Styrene (ABS)	Wire Leads	User Selectable	4p4c	1	Phosphor Bronze		Gold		Does Not Contain LED	User Selectable	Unshielded			1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) User Selectable Unshielded
