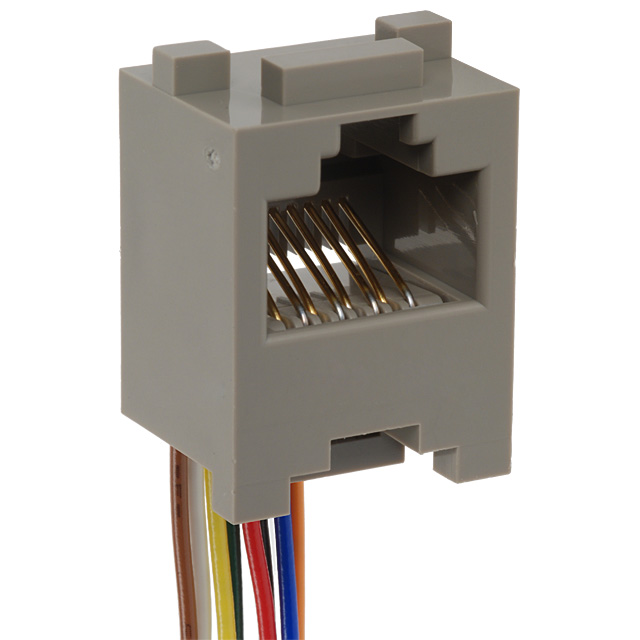

TM1RV647AF88-35S-150M
Hirose Electric USA, Inc.
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TM1RV647AF88-35S-150M
Hirose Electric USA, Inc.
CONN MOD JACK 8P8C UNSHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TM1RV647AF88-35S-150M |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Panel Stops |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| LED Color | Does Not Contain LED |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | User Selectable |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.29 | |
| 10 | $ 5.58 | |||
| 25 | $ 5.04 | |||
| 50 | $ 4.67 | |||
| 100 | $ 4.33 | |||
| 250 | $ 3.94 | |||
| 500 | $ 3.67 | |||
| 1000 | $ 3.43 | |||
| 2500 | $ 3.15 | |||
Description
General part information
TM1R Series
Jack Modular Connector 8p8c (RJ45, Ethernet) User Selectable Unshielded
