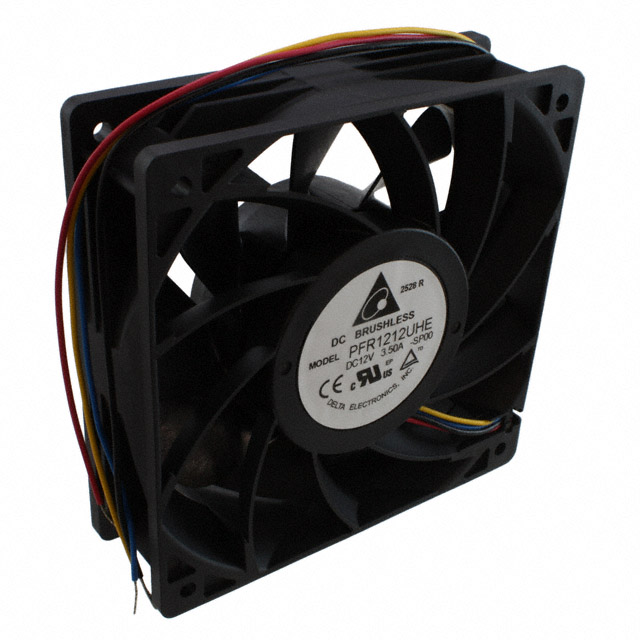

PFR1212UHE-SP00

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 228.65CFM 65.5DB 120 X 120 X 38MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 8V TO 13.2V 228.65CFM 65.5DB 120 X 120 X 38MM

Technical Specifications

Parameters and characteristics for this part

Specification	PFR1212UHE-SP00

Air Flow	228.6 CFM
Air Flow	6.4 m³/min
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	2.7 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	32.4 W
RPM	6600 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	1.206 in H2O
Static Pressure	300.4 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8 VDC
Weight	0.904 lb
Weight	410.05 g
Width [y]	38 mm

Part	Air Flow	Air Flow	Approval Agency	Width [y]	Weight	Weight	Power (Watts)	RPM	Voltage - Rated	Termination	Fan Type	Noise	Material - Blade	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Static Pressure	Static Pressure	Features	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Delta Electronics PFR1212DHE-F00	7.12 mł/min	254.3 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	44.4 W	7400 RPM	12 VDC	3 Wire Leads	Tubeaxial	68.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	3.7 A	8 VDC	13.2 VDC	Plastic	358.2 Pa	1.438 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics PFR1212UHE-F00	6.4 m³/min	228.6 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	32.4 W	6600 RPM	12 VDC	3 Wire Leads	Tubeaxial	65.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	2.7 A	8 VDC	13.2 VDC	Plastic	300.4 Pa	1.206 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics PFR1212UHE-SP00	6.4 m³/min	228.6 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	32.4 W	6600 RPM	12 VDC	4 Wire Leads	Tubeaxial	65.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	2.7 A	8 VDC	13.2 VDC	Plastic	300.4 Pa	1.206 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 228.6 CFM (6.40m³/min) 4 Wire Leads
