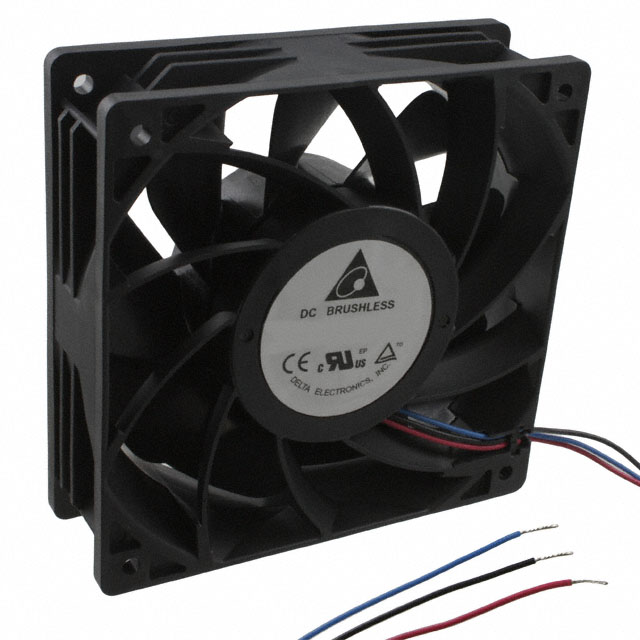

PFR1212DHE-F00

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFR1212DHE-F00

Air Flow	7.12 mł/min
Air Flow	254.3 CFM
Approval Agency	CE, cURus, VDE
Bearing Type	Ball
Current Rating (Amps)	3.7 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	68.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	44.4 W
RPM	7400 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	358.2 Pa
Static Pressure	1.438 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8 VDC
Weight	0.904 lb
Weight	410.05 g
Width [y]	38 mm

Part	Air Flow	Air Flow	Approval Agency	Width [y]	Weight	Weight	Power (Watts)	RPM	Voltage - Rated	Termination	Fan Type	Noise	Material - Blade	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Static Pressure	Static Pressure	Features	Bearing Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Delta Electronics PFR1212DHE-F00	7.12 mł/min	254.3 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	44.4 W	7400 RPM	12 VDC	3 Wire Leads	Tubeaxial	68.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	3.7 A	8 VDC	13.2 VDC	Plastic	358.2 Pa	1.438 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics PFR1212UHE-F00	6.4 m³/min	228.6 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	32.4 W	6600 RPM	12 VDC	3 Wire Leads	Tubeaxial	65.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	2.7 A	8 VDC	13.2 VDC	Plastic	300.4 Pa	1.206 in H2O	Locked Rotor Protection Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics PFR1212UHE-SP00	6.4 m³/min	228.6 CFM	CE cURus VDE	38 mm	0.904 lb	410.05 g	32.4 W	6600 RPM	12 VDC	4 Wire Leads	Tubeaxial	65.5 dB(A)	Plastic	70000 Hrs	120 mm	120 mm	2.7 A	8 VDC	13.2 VDC	Plastic	300.4 Pa	1.206 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Ball	70 °C	70 °C	-10 °C	-10 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 254.3 CFM (7.12m³/min) 3 Wire Leads
