09338162704

Active

HARTING Technology Group

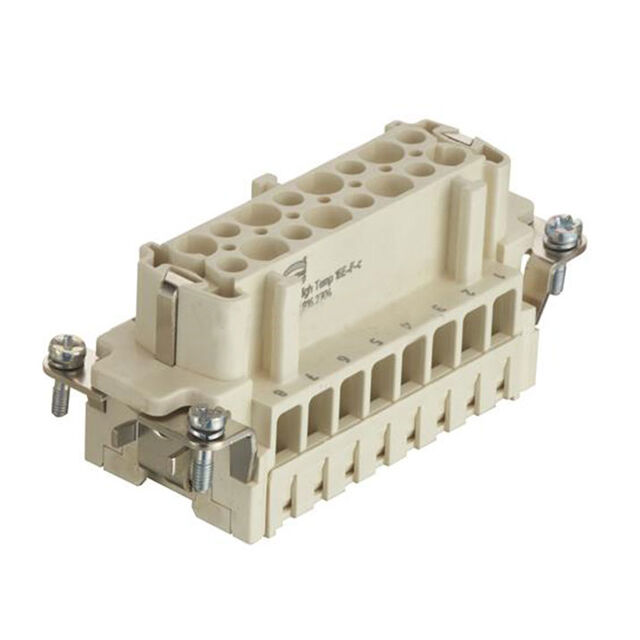

HAN 16E FEMALE CRIMP INSERT - HIGH TEMP VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 16E FEMALE CRIMP INSERT - HIGH TEMP VERSION

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Contact Type	Termination Style	Connector Type	Voltage Rating	Gender	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Contact Material	Color
HARTING Technology Group 09338162704	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B	Han® E	Crimp	Insert without Contacts	500 V	Female	16 A	16+Ground
HARTING Technology Group 09338162602	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B	Han® E	Crimp	Insert without Contacts	400 V	Male	16 A	16+Ground
HARTING Technology Group 09338162703	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B		Screw		500 V	Female	16 A	16+Ground
HARTING Technology Group 09338162601	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B		Screw		400 V	Male	16 A	16+Ground	UL94 V-0	Copper Alloy	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts 16+Ground Position Crimp
