09338162602

Obsolete

HARTING Technology Group

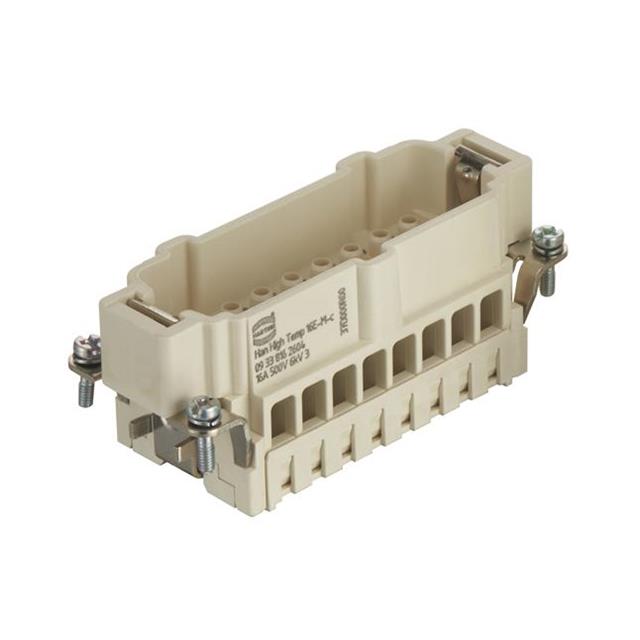

HAN HIGH TEMP 16E CRIMP MALE

Search across all available documentation for this part.

Obsolete

HARTING Technology Group

HAN HIGH TEMP 16E CRIMP MALE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size	Contact Type	Termination Style	Connector Type	Voltage Rating	Gender	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Contact Material	Color
HARTING Technology Group 09338162704	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B	Han® E	Crimp	Insert without Contacts	500 V	Female	16 A	16+Ground
HARTING Technology Group 09338162602	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B	Han® E	Crimp	Insert without Contacts	400 V	Male	16 A	16+Ground
HARTING Technology Group 09338162703	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B		Screw		500 V	Female	16 A	16+Ground
HARTING Technology Group 09338162601	200 °C	-40 °C	Liquid Crystal Polymer (LCP)	16 B		Screw		400 V	Male	16 A	16+Ground	UL94 V-0	Copper Alloy	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Male Insert without Contacts 16+Ground Position Crimp
