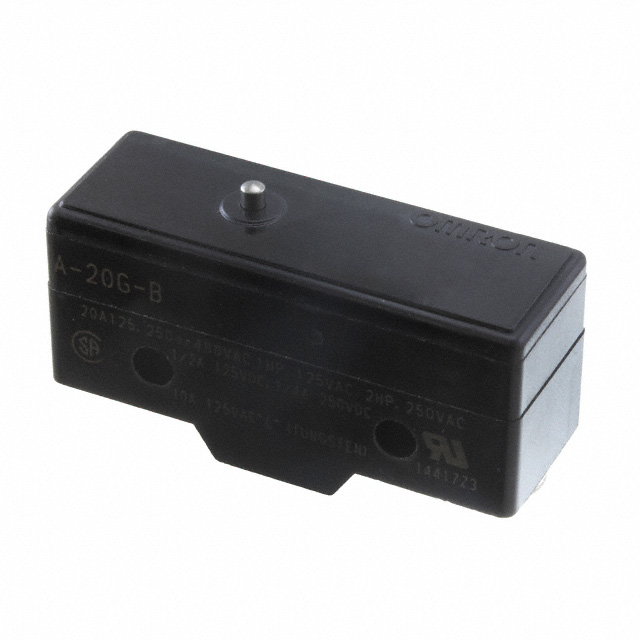

A-20G-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-20G-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-20G-B

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	6 A, 20 A
Differential Travel	0.008 in
Differential Travel	0.2 mm
Electrical Life	500000 Cycles
Ingress Protection	IP00
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force [Max]	625 gf
Operating Force [Min]	400 gf
Operating Position	0.64 in
Operating Position	16.3 mm
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	0.25 mm
Overtravel	0.01 in
Pretravel	1.3 mm
Pretravel	0.051 in
Release Force	285 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

A-20G Series

Part	Mechanical Life	Operating Position	Operating Position	Termination Style	Circuit	Release Force	Actuator Type	Overtravel	Overtravel	Operating Force [Min]	Operating Force [Max]	Ingress Protection	Voltage Rating - DC	Switch Function	Differential Travel	Differential Travel	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Operating Force
Omron Electronics Inc-EMC Div A-20GD	1000000 Cycles	26.2 mm	1.03 "	Solder Lug	SPDT	285 gf	Round (Pin Plunger)	3 mm	0.118 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV22-B	1000000 Cycles			Screw Terminal	SPDT	42 gf	Lever Roller	1.2 mm	0.047 "			IP00	30 V	On-Mom	0.047 in	1.2 mm	Chassis Mount	-25 °C	80 C	6.3 mm	0.248 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20G-B7-K(CI)	1000000 Cycles	16.3 mm	0.64 in	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	0.25 mm	0.01 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV-B	1000000 Cycles	19 mm	0.748 "	Screw Terminal	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GD-B7-K	1000000 Cycles	26.2 mm	1.03 "	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	3 mm	0.118 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20G-B7CR-K
Omron Electronics Inc-EMC Div A-20G-B	1000000 Cycles	16.3 mm	0.64 in	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	0.25 mm	0.01 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV-K	1000000 Cycles	19 mm	0.748 "	Solder Lug	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GV-C-K	1000000 Cycles	19 mm	0.748 "		SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GV-B7-K	1000000 Cycles	19 mm	0.748 "	Screw Terminal	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
