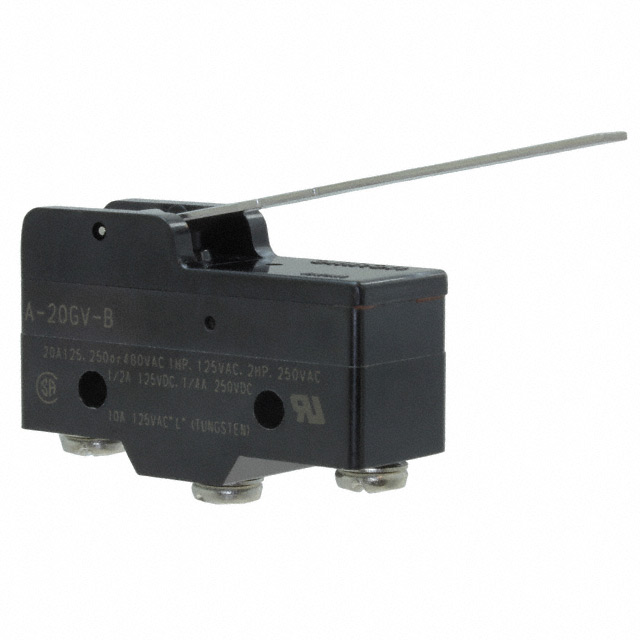

A-20GV-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A-20GV-B

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACTION SPDT 20A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-20GV-B

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	6 A, 20 A
Differential Travel	0.094 in
Differential Travel	2.4 mm
Electrical Life	500000 Cycles
Ingress Protection	IP00
Mechanical Life	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	70 gf
Operating Position	19 mm
Operating Position	0.748 "
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Overtravel	4 mm
Overtravel	0.158 in
Pretravel	15.9 mm
Pretravel	0.625 in
Release Force	14 gf
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

A-20G Series

Part	Mechanical Life	Operating Position	Operating Position	Termination Style	Circuit	Release Force	Actuator Type	Overtravel	Overtravel	Operating Force [Min]	Operating Force [Max]	Ingress Protection	Voltage Rating - DC	Switch Function	Differential Travel	Differential Travel	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Pretravel	Pretravel	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Operating Force
Omron Electronics Inc-EMC Div A-20GD	1000000 Cycles	26.2 mm	1.03 "	Solder Lug	SPDT	285 gf	Round (Pin Plunger)	3 mm	0.118 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV22-B	1000000 Cycles			Screw Terminal	SPDT	42 gf	Lever Roller	1.2 mm	0.047 "			IP00	30 V	On-Mom	0.047 in	1.2 mm	Chassis Mount	-25 °C	80 C	6.3 mm	0.248 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20G-B7-K(CI)	1000000 Cycles	16.3 mm	0.64 in	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	0.25 mm	0.01 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV-B	1000000 Cycles	19 mm	0.748 "	Screw Terminal	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GD-B7-K	1000000 Cycles	26.2 mm	1.03 "	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	3 mm	0.118 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20G-B7CR-K
Omron Electronics Inc-EMC Div A-20G-B	1000000 Cycles	16.3 mm	0.64 in	Screw Terminal	SPDT	285 gf	Round (Pin Plunger)	0.25 mm	0.01 in	400 gf	625 gf	IP00	30 V	On-Mom	0.008 in	0.2 mm	Chassis Mount	-25 °C	80 C	1.3 mm	0.051 in	500000 Cycles	125 V	6 A 20 A
Omron Electronics Inc-EMC Div A-20GV-K	1000000 Cycles	19 mm	0.748 "	Solder Lug	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GV-C-K	1000000 Cycles	19 mm	0.748 "		SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
Omron Electronics Inc-EMC Div A-20GV-B7-K	1000000 Cycles	19 mm	0.748 "	Screw Terminal	SPDT	14 gf	Lever Straight	4 mm	0.158 in			IP00	30 V	On-Mom	0.094 in	2.4 mm	Chassis Mount	-25 °C	80 C	15.9 mm	0.625 in	500000 Cycles	125 V	6 A 20 A	70 gf
