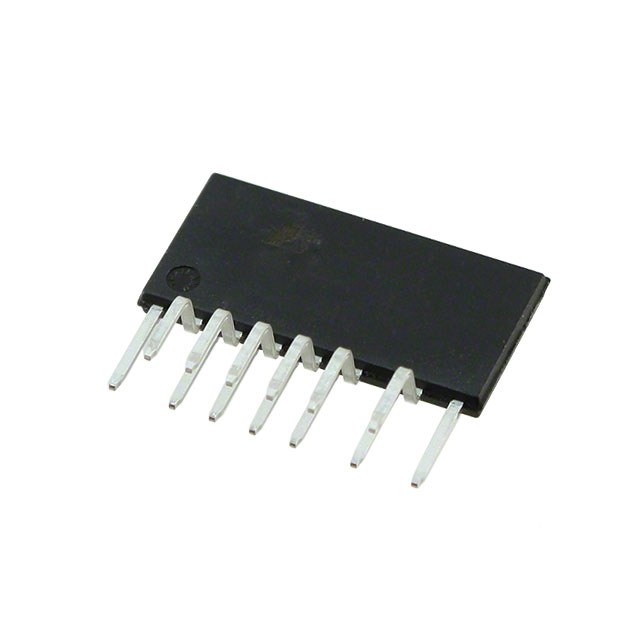

LCS701HG

Active

Power Integrations

HALF BRIDGE BASED MOSFET DRIVER, PZIP13, ESIP-16/13

Search across all available documentation for this part.

Active

Power Integrations

HALF BRIDGE BASED MOSFET DRIVER, PZIP13, ESIP-16/13

Technical Specifications

Parameters and characteristics for this part

Specification	LCS701HG

Applications	General Purpose
Current - Peak Output	7.7 A
Fault Protection	Over Temperature, Short Circuit, UVLO, Current Limiting, Over Voltage
Features	Auto Restart, Slew Rate Controlled
Interface	On/Off
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Exposed Pad, 16-SSIP, Formed Leads
Package / Case	13 Leads
Rds On (Typ)	1 Ohm
Technology	Power MOSFET
Voltage - Load [Max]	15 V
Voltage - Load [Min]	11.4 V
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	11.4 V

Part	Package / Case	Package / Case	Interface	Technology	Mounting Type	Current - Peak Output	Features	Applications	Load Type	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package
Power Integrations LCS701HG	16-SSIP Exposed Pad Formed Leads	13 Leads	On/Off	Power MOSFET	Through Hole	7.7 A	Auto Restart Slew Rate Controlled	General Purpose	Inductive	15 V	11.4 V	1 Ohm	150 °C	-40 °C	Current Limiting Over Temperature Over Voltage Short Circuit UVLO	15 V	11.4 V
Power Integrations LCS701LG	16-SSIP Exposed Pad Formed Leads	13 Leads	On/Off	Power MOSFET	Through Hole	7.7 A	Auto Restart Slew Rate Controlled	General Purpose	Inductive	15 V	11.4 V	1 Ohm	150 °C	-40 °C	Current Limiting Over Temperature Over Voltage Short Circuit UVLO	15 V	11.4 V	eSIP-16K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose Power MOSFET eSIP-16J
