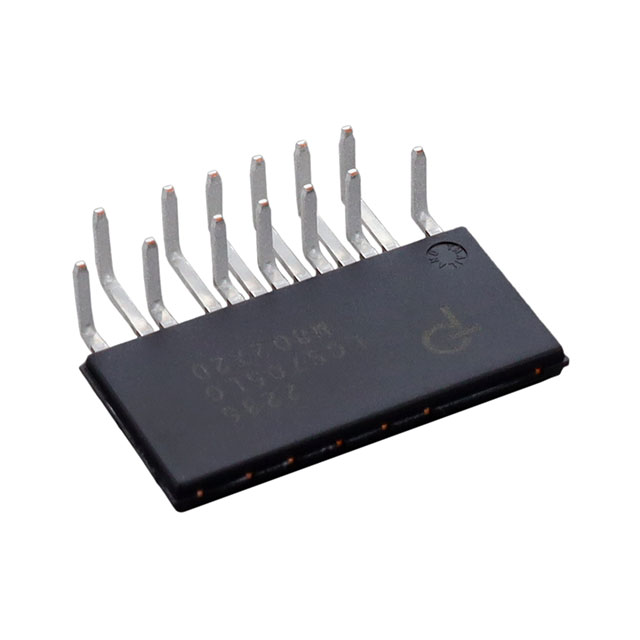

LCS701LG

Active

Power Integrations

IC HALF BRIDGE DRIVER ESIP16K

Search across all available documentation for this part.

Active

Power Integrations

IC HALF BRIDGE DRIVER ESIP16K

Technical Specifications

Parameters and characteristics for this part

Specification	LCS701LG

Applications	General Purpose
Current - Peak Output	7.7 A
Fault Protection	Over Temperature, Short Circuit, UVLO, Current Limiting, Over Voltage
Features	Auto Restart, Slew Rate Controlled
Interface	On/Off
Load Type	Inductive
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Exposed Pad, 16-SSIP, Formed Leads
Package / Case	13 Leads
Rds On (Typ)	1 Ohm
Supplier Device Package	eSIP-16K
Technology	Power MOSFET
Voltage - Load [Max]	15 V
Voltage - Load [Min]	11.4 V
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	11.4 V

Part	Package / Case	Package / Case	Interface	Technology	Mounting Type	Current - Peak Output	Features	Applications	Load Type	Voltage - Load [Max]	Voltage - Load [Min]	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Fault Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package
Power Integrations LCS701HG	16-SSIP Exposed Pad Formed Leads	13 Leads	On/Off	Power MOSFET	Through Hole	7.7 A	Auto Restart Slew Rate Controlled	General Purpose	Inductive	15 V	11.4 V	1 Ohm	150 °C	-40 °C	Current Limiting Over Temperature Over Voltage Short Circuit UVLO	15 V	11.4 V
Power Integrations LCS701LG	16-SSIP Exposed Pad Formed Leads	13 Leads	On/Off	Power MOSFET	Through Hole	7.7 A	Auto Restart Slew Rate Controlled	General Purpose	Inductive	15 V	11.4 V	1 Ohm	150 °C	-40 °C	Current Limiting Over Temperature Over Voltage Short Circuit UVLO	15 V	11.4 V	eSIP-16K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Half Bridge Driver General Purpose Power MOSFET eSIP-16K
