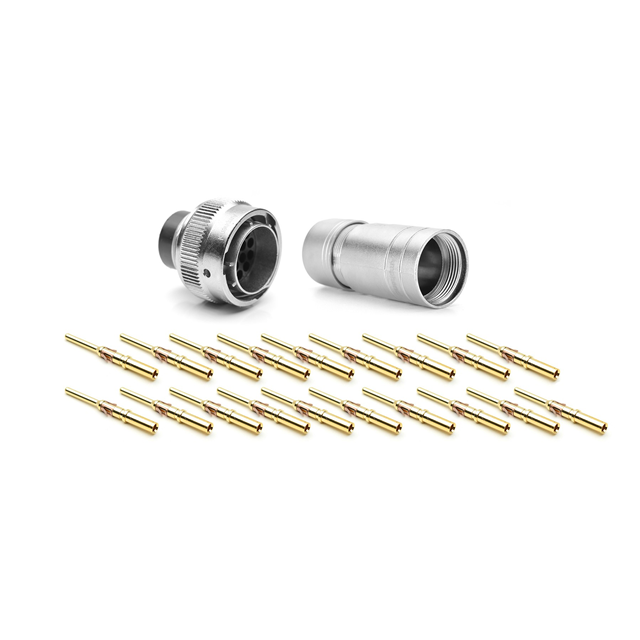

RT0W61419PNH03SS-K
ActiveAmphenol Sine Systems Corp
CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RT0W61419PNH03SS-K
ActiveAmphenol Sine Systems Corp
CONN PLUG MALE 19POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT0W61419PNH03SS-K |
|---|---|
| Applications | Automation, Aerospace, Telecom, Industrial, Transportation |
| Backshell Material, Plating | Nickel, Zinc Die Cast |
| Cable Opening [Max] [diameter] | 0.394 in |
| Cable Opening [Max] [diameter] | 10 mm |
| Cable Opening [Min] [diameter] | 0.256 in |
| Cable Opening [Min] [diameter] | 6.5 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 5 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 19 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert [Max] [custom] | 19 |
| Shell Size - Insert [Min] [custom] | 14 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.90 | |
| 10 | $ 49.56 | |||
| 25 | $ 45.02 | |||
| 50 | $ 41.95 | |||
| 100 | $ 39.18 | |||
| 250 | $ 35.91 | |||
Description
General part information
RT0W61419 Series
19 Position Circular Connector Plug, Male Pins Crimp
