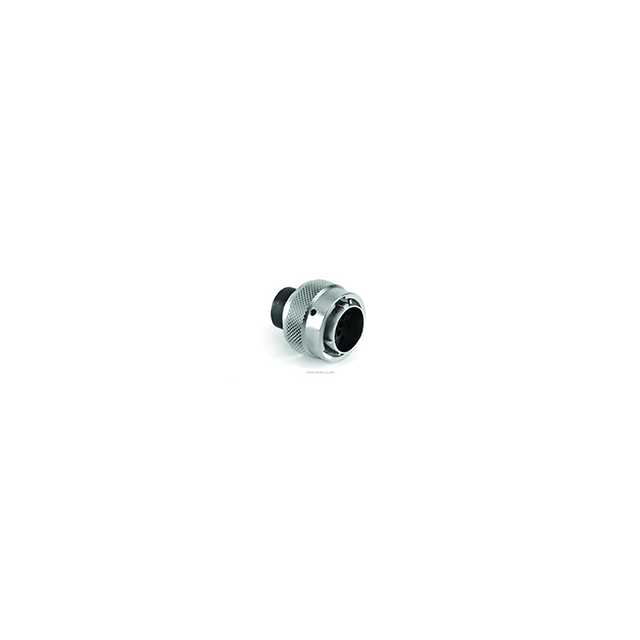

RT0W61419PNH03

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 2

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT0W61419PNH03

Active

Amphenol Sine Systems Corp

PLUG, MALE WITH SILICONE SEAL, 2

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W61419PNH03

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Includes	1 Gasket, 1 Connector, 1 O-Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Shielded
Type	For Male Pins

RT0W61419 Series

Part	Voltage Rating	Primary Material	Orientation	Fastening Type	Shell Material	Mounting Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness - Mating	Shell Finish	Connector Type	Termination	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Finish - Mating	Current Rating (Amps)	Ingress Protection	Features	Material Flammability Rating	Insert Material	Note	Housing Color	Contact Size	Contact Type	Includes	Contact Shape	Shielding	Type	Contact Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Applications
Amphenol Sine Systems Corp RT0W61419PNH-K	150 VAC	Metal	N	Bayonet Lock	Zinc Die Cast	Free Hanging (In-Line)	19	-40 °C	105 ░C	Silver	Flash	Nickel	Male Pins Plug	Crimp	19	14	Gold	7.5 A	IP67 - Dust Tight Waterproof
Amphenol Sine Systems Corp RT0W61419PNH03			N	Bayonet Lock	Zinc Alloy	Free Hanging (In-Line)	19	-40 °C	125 °C			Nickel	Plug Housing		19	14			IP67 - Dust Tight Waterproof	Coupling Nut	UL94 V-0	Thermoplastic	Contacts Not Included	Silver	20	Crimp	1 Connector 1 Gasket 1 O-Ring	Circular	Shielded	For Male Pins
Amphenol Sine Systems Corp RT0W61419PNHEC03
Amphenol Sine Systems Corp RT0W61419PNH03SS-K	250 VAC	Metal	N	Bayonet Lock	Zinc Die Cast	Free Hanging (In-Line)	19	-40 °C	105 ░C	Silver	Flash	Nickel	Male Pins Plug	Crimp	19	14	Gold	5 A	IP67 IP69K	Backshell Coupling Nut	UL94 V-0	Polyamide (PA66) Nylon 6/6							Shielded		Brass	0.256 in	6.5 mm	0.394 in	10 mm	Nickel Zinc Die Cast	Aerospace Automation Industrial Telecom Transportation

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 16.04

Description

General part information

RT0W61419 Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
