TOGGLE SWITCH, ON-ON, SPDT, ILLUMINATED, G SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

G12JPCF

Active

NKK Switches

TOGGLE SWITCH, ON-ON, SPDT, ILLUMINATED, G SERIES, 100 MA, PANEL MOUNT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G12JPCF

Actuator Length [x]	3.8 mm
Actuator Material	Glass Filled, Polyamide (PA), Nylon
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Process Sealed
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2 VDC, 2.1 VDC
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

wt Series

...

Part	Mounting Type	Electrical Life	Circuit	Voltage Rating - AC	Illumination	Actuator Length [x]	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Material	Current Rating (Amps)	Actuator Type	Bushing Thread	Features
NKK Switches B15EV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B19AB	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	10 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches B24KW	Through Hole	50000 Cycles	SP3T	28 V	Non-Illuminated	5 mm	On-On-On	28 V	-30 ░C	85 °C	Wire Wrap		0.4 VA	Lever for Cap	Unthreaded	Jumper needed to achieve triple throw
NKK Switches B15HW	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Mom	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches A19KV	Right Angle Through Hole Vertical	50000 Cycles	SPDT	28 V	Non-Illuminated	5 mm	On-Off-Mom	28 V	-30 ░C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Lever for Cap	Unthreaded Square	Process Sealed
NKK Switches G12AP	Through Hole	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches B22EP	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded	Epoxy Sealed Terminals
NKK Switches B13JP	Through Hole	50000 Cycles	SPDT	28 V	Non-Illuminated	6.3 mm	On-Off-On	28 V	-30 ░C	85 °C	PC Pin	Brass Nickel Plated	0.4 VA	Standard Round	Unthreaded	Epoxy Sealed Terminals
NKK Switches G12AV	Right Angle Through Hole Vertical	100000 Cycles	SPDT	28 V	Non-Illuminated	3.8 mm	On-On	28 V	-25 °C	85 °C	PC Pin	Glass Filled Nylon Polyamide (PA)	0.4 VA	Standard Round	Unthreaded	Process Sealed
NKK Switches A22EW	Through Hole	50000 Cycles	DPDT	28 V	Non-Illuminated	10 mm	On-On	28 V	-30 ░C	85 °C	Wire Wrap	Brass Nickel Plated	0.4 VA	Flatted	Unthreaded Square	Process Sealed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.40
		10	$ 7.25
		25	$ 6.84
		50	$ 6.54
		100	$ 6.25
		250	$ 5.90
		500	$ 5.64
		1000	$ 5.39
Newark	Each	1	$ 14.98
		5	$ 13.97
		10	$ 12.85
		25	$ 11.73
		50	$ 10.61
		100	$ 9.37
		250	$ 8.42
TME	N/A	1	$ 10.99
		20	$ 10.64

Description

General part information

wt Series

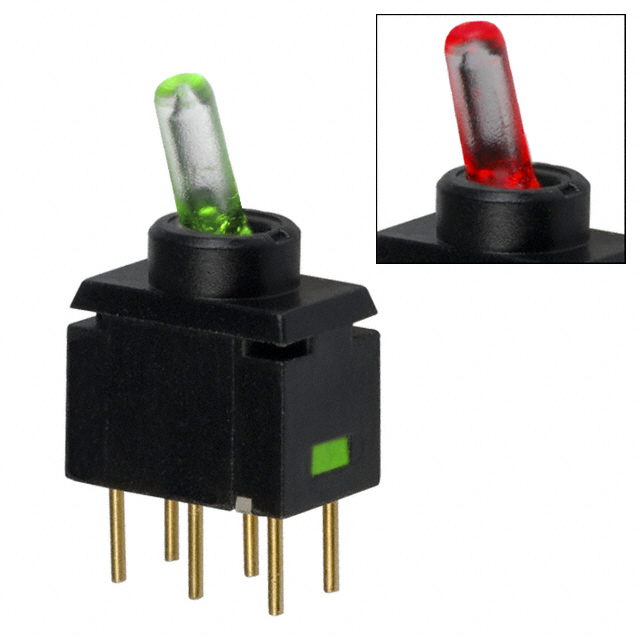

The G12JPCF is a single-pole double-throw (SPDT) ultra miniature fully illuminated Toggle Switch with gold-plated phosphor bronze straight PC terminals, ON-NONE-ON function and clear polyamide actuator. The series G fully illuminated toggle for highly visible status indication with LED in red/green for bicolour. The ultra miniature size allows high density mounting and extremely lightweight makes these switches ideal for handheld equipment. The totally sealed body construction prevents contact contamination and allows time- and money-saving automated soldering and cleaning.
