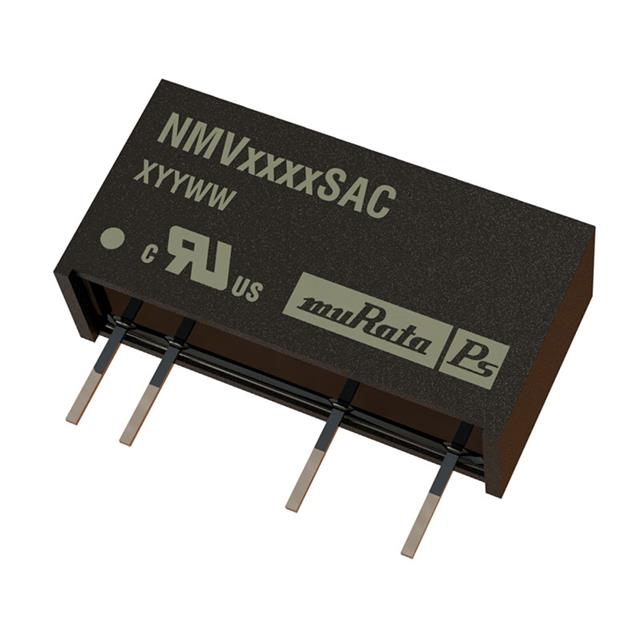

NMV1505SAC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 5V 1W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Applications	Type	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Voltage - Output 2	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMV1505SC	85 °C	-40 °C	100 mA	100 mA	13.5 V	ITE (Commercial)	Isolated Module	2	16.5 V	69 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole	-5 V	7-SIP Module 5 Leads	5 V
Murata Power Solutions Inc. NMV1515SC	85 °C	-40 °C		33 mA	13.5 V	ITE (Commercial)	Isolated Module	2	16.5 V	77 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole	-15 V	7-SIP Module 5 Leads	15 V
Murata Power Solutions Inc. NMV1505SAC	85 °C	-40 °C			13.5 V	ITE (Commercial)	Isolated Module	1	16.5 V	67 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole		7-SIP Module 4 Leads	5 V	200 mA
Murata Power Solutions Inc. NMV1515SAC	85 °C	-40 °C			13.5 V	ITE (Commercial)	Isolated Module	1	16.5 V	77 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole		7-SIP Module 4 Leads	15 V	67 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 200mA 13.5V - 16.5V Input
