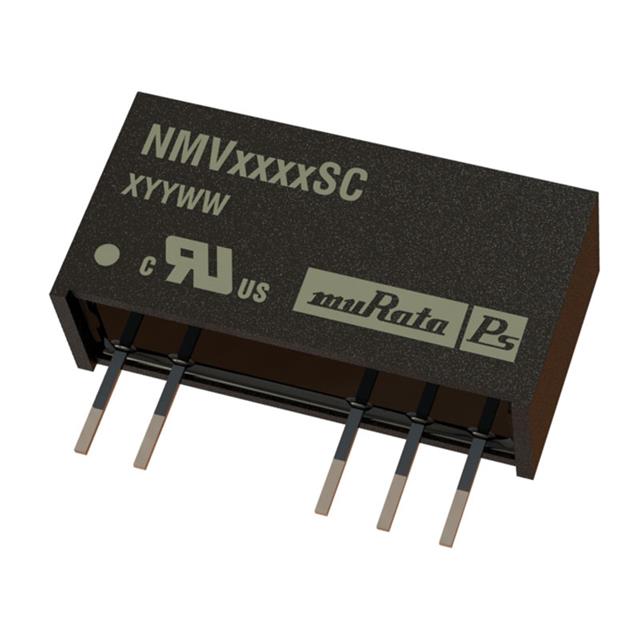

NMV1515SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 15 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

NMV1515SC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 15 V

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NMV1515SC

Applications	ITE (Commercial)
Current - Output (Max)	33 mA
Efficiency	77 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Size / Dimension [x]	19.5 mm
Size / Dimension [x]	0.77 "
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 in
Size / Dimension [z]	0.39 in
Size / Dimension [z]	10 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	13.5 V
Voltage - Isolation	3000 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

NMV15 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Applications	Type	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Voltage - Output 2	Package / Case	Voltage - Output 1	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMV1505SC	85 °C	-40 °C	100 mA	100 mA	13.5 V	ITE (Commercial)	Isolated Module	2	16.5 V	69 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole	-5 V	7-SIP Module 5 Leads	5 V
Murata Power Solutions Inc. NMV1515SC	85 °C	-40 °C		33 mA	13.5 V	ITE (Commercial)	Isolated Module	2	16.5 V	77 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole	-15 V	7-SIP Module 5 Leads	15 V
Murata Power Solutions Inc. NMV1505SAC	85 °C	-40 °C			13.5 V	ITE (Commercial)	Isolated Module	1	16.5 V	67 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole		7-SIP Module 4 Leads	5 V	200 mA
Murata Power Solutions Inc. NMV1515SAC	85 °C	-40 °C			13.5 V	ITE (Commercial)	Isolated Module	1	16.5 V	77 %	6 mm	0.39 in	10 mm	0.24 in	19.5 mm	0.77 "	3000 V	Through Hole		7-SIP Module 4 Leads	15 V	67 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.97
		5	$ 10.92
		10	$ 10.84
		25	$ 10.73
		50	$ 10.46
		100	$ 9.93
		250	$ 9.29
		500	$ 8.66
		1000	$ 8.12
Newark	Each	25	$ 10.70
		50	$ 10.44
		100	$ 9.92
		250	$ 9.27

Description

General part information

NMV15 Series

The NMV series single/dual-output isolated DC/DC Converter is the standard building blocks for on-board distributed power systems. It is ideally suited for providing local supplies on control system boards with the added benefit of 3kVDC galvanic isolation to reduce switching noise. It is available in SIP and DIP with dual and single output pin-out. All of the rated power may be drawn from a single pin provided the total load does not exceed 1W.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
