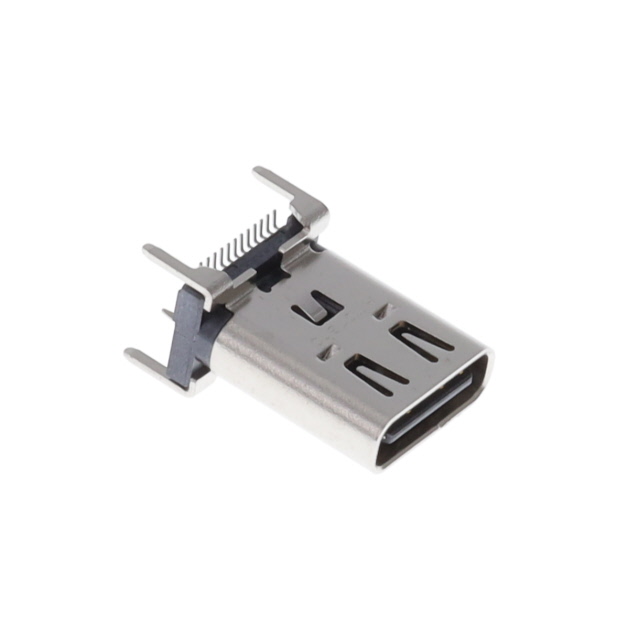

12401951E412A
ActiveAmphenol ICC (Commercial Products)
USB3.2 GEN2, TYPE C, VERTICAL, D
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12401951E412A
ActiveAmphenol ICC (Commercial Products)
USB3.2 GEN2, TYPE C, VERTICAL, D
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12401951E412A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.16 | |
| 10 | $ 1.65 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 2.16 | ||
| 10 | $ 1.65 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.27 | |||
| Tape & Reel (TR) | 300 | $ 1.13 | ||
| 600 | $ 1.05 | |||
| 900 | $ 1.01 | |||
| 1500 | $ 0.96 | |||
| 2100 | $ 0.92 | |||
| 3000 | $ 0.89 | |||
| 7500 | $ 0.82 | |||
Description
General part information
1240195 Series
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Surface Mount, Through Hole
