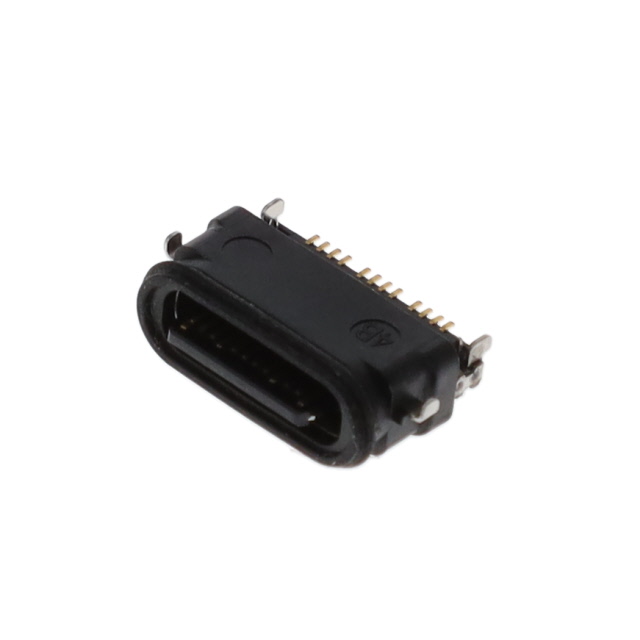

124019572112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, MID MOUN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
124019572112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, MID MOUN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 124019572112A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Current Rating (Amps) | 5 A |
| Gender | Receptacle |
| Ingress Protection | IPX7 - Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Right Angle, Through Hole, Surface Mount, Board Cutout |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.69 | |
| 10 | $ 2.05 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.43 | |||
| Digi-Reel® | 1 | $ 2.69 | ||
| 10 | $ 2.05 | |||
| 25 | $ 1.85 | |||
| 50 | $ 1.71 | |||
| 100 | $ 1.58 | |||
| 250 | $ 1.43 | |||
| Tape & Reel (TR) | 800 | $ 1.27 | ||
| 1600 | $ 1.19 | |||
| 2400 | $ 1.14 | |||
| 4000 | $ 1.08 | |||
| 5600 | $ 1.05 | |||
| 8000 | $ 1.03 | |||
Description
General part information
1240195 Series
USB-C (USB TYPE-C) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 24 Position Board Cutout, Surface Mount, Right Angle; Through Hole
