NSN0.50NY500

Active

Techflex

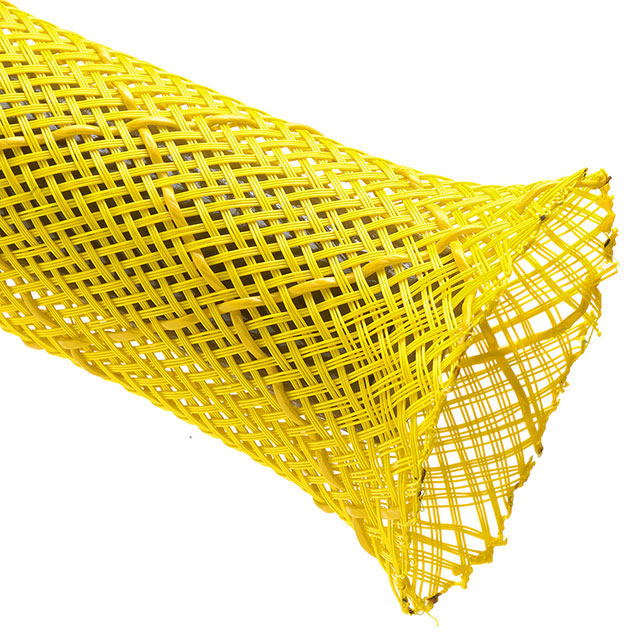

EXPAND SLEEV 1/2"X500' YLW/NEON

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEV 1/2"X500' YLW/NEON

Technical Specifications

Parameters and characteristics for this part

Specification	NSN0.50NY500

Abrasion Protection	Wear Resistant, Abrasion and Cut Resistant
Color	Yellow, Neon
Diameter - Inside, Expanded [diameter]	0.75 in
Diameter - Inside, Expanded [diameter]	19.05 mm
Diameter - Inside, Non-Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm
Features	Slip Resistant, Clean Cut
Length [x]	500 '
Length [x]	152.4 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Operating Temperature [Max]	79 °C
Operating Temperature [Min]	-40 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.07 in
Wall Thickness	1.78 mm

Part	Wall Thickness	Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Material	Features	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Abrasion Protection	Type	Color	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length [x]	Length [x]
Techflex NSN0.25BK1000	0.07 in	1.78 mm	-40 °C	79 °C	1000 ft	304.8 m	Polyethylene Terephthalate (PET) Halogen Free	Clean Cut Slip Resistant	Expandable	0.438 in	11.13 mm	Abrasion and Cut Resistant Wear Resistant	Sleeve	Black
Techflex NSN0.50BK500	0.07 in	1.78 mm	-40 °C	79 °C			Polyethylene Terephthalate (PET) Halogen Free	Clean Cut Slip Resistant	Expandable	0.75 in	19.05 mm	Abrasion and Cut Resistant Wear Resistant	Sleeve	Black	0.5 in	12.7 mm	500 '	152.4 m
Techflex NSN0.50NY500	0.07 in	1.78 mm	-40 °C	79 °C			Polyethylene Terephthalate (PET) Halogen Free	Clean Cut Slip Resistant	Expandable	0.75 in	19.05 mm	Abrasion and Cut Resistant Wear Resistant	Sleeve	Neon Yellow	0.5 in	12.7 mm	500 '	152.4 m
Techflex NSN0.50SS500	0.07 in	1.78 mm	-40 °C	79 °C			Polyethylene Terephthalate (PET) Halogen Free	Clean Cut Safety Stripe Slip Resistant	Expandable	0.75 in	19.05 mm	Abrasion and Cut Resistant Wear Resistant	Sleeve		0.5 in	12.7 mm	500 '	152.4 m
Techflex NSN0.38SS125	0.07 in	1.78 mm	-40 °C	79 °C	125 ft	38.1 m	Polyethylene Terephthalate (PET) Halogen Free	Clean Cut Safety Stripe Slip Resistant	Expandable	0.5 in	12.7 mm	Abrasion and Cut Resistant Wear Resistant	Sleeve		0.375 in	9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 181.26

General part information

Sleeve X 500' (152.40m) Yellow, Neon
