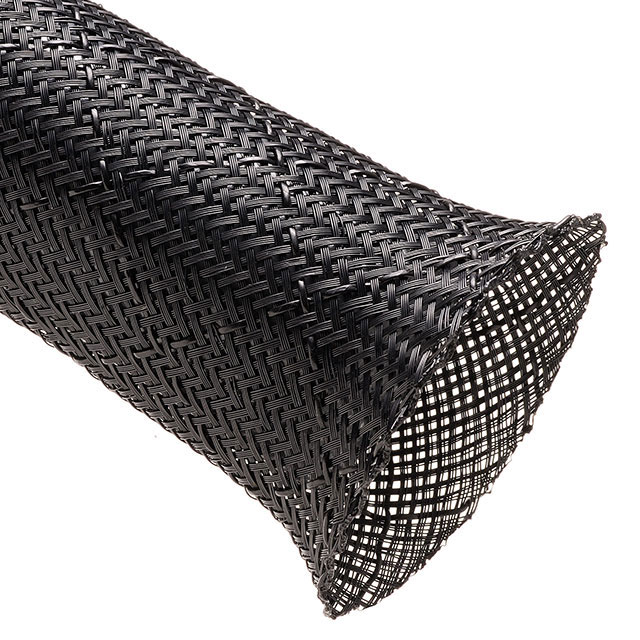

NSN0.25BK1000
ActiveTechflex
EXPAND SLEEVE 1/4" X 1000' BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NSN0.25BK1000
ActiveTechflex
EXPAND SLEEVE 1/4" X 1000' BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NSN0.25BK1000 |
|---|---|
| Abrasion Protection | Wear Resistant, Abrasion and Cut Resistant |
| Color | Black |
| Diameter - Inside, Expanded [diameter] | 0.438 in |
| Diameter - Inside, Expanded [diameter] | 11.13 mm |
| Features | Slip Resistant, Clean Cut |
| Length | 1000 ft |
| Length | 304.8 m |
| Material | Polyethylene Terephthalate (PET), Halogen Free |
| Operating Temperature [Max] | 79 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Sleeve |
| Type Attributes | Expandable |
| Wall Thickness | 0.07 in |
| Wall Thickness | 1.78 mm |
NSN0 Series
| Part | Wall Thickness | Wall Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Material | Features | Type Attributes | Diameter - Inside, Expanded [diameter] | Diameter - Inside, Expanded [diameter] | Abrasion Protection | Type | Color | Diameter - Inside, Non-Expanded [diameter] | Diameter - Inside, Non-Expanded [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Techflex | 0.07 in | 1.78 mm | -40 °C | 79 °C | 1000 ft | 304.8 m | Polyethylene Terephthalate (PET) Halogen Free | Clean Cut Slip Resistant | Expandable | 0.438 in | 11.13 mm | Abrasion and Cut Resistant Wear Resistant | Sleeve | Black | ||||
Techflex | 0.07 in | 1.78 mm | -40 °C | 79 °C | Polyethylene Terephthalate (PET) Halogen Free | Clean Cut Slip Resistant | Expandable | 0.75 in | 19.05 mm | Abrasion and Cut Resistant Wear Resistant | Sleeve | Black | 0.5 in | 12.7 mm | 500 ' | 152.4 m | ||
Techflex | 0.07 in | 1.78 mm | -40 °C | 79 °C | Polyethylene Terephthalate (PET) Halogen Free | Clean Cut Slip Resistant | Expandable | 0.75 in | 19.05 mm | Abrasion and Cut Resistant Wear Resistant | Sleeve | Neon Yellow | 0.5 in | 12.7 mm | 500 ' | 152.4 m | ||
Techflex | 0.07 in | 1.78 mm | -40 °C | 79 °C | Polyethylene Terephthalate (PET) Halogen Free | Clean Cut Safety Stripe Slip Resistant | Expandable | 0.75 in | 19.05 mm | Abrasion and Cut Resistant Wear Resistant | Sleeve | 0.5 in | 12.7 mm | 500 ' | 152.4 m | |||
Techflex | 0.07 in | 1.78 mm | -40 °C | 79 °C | 125 ft | 38.1 m | Polyethylene Terephthalate (PET) Halogen Free | Clean Cut Safety Stripe Slip Resistant | Expandable | 0.5 in | 12.7 mm | Abrasion and Cut Resistant Wear Resistant | Sleeve | 0.375 in | 9.53 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 219.21 | |
Description
General part information
NSN0 Series
Sleeve X 1000' (304.80m) Black
