A1545.N0750.14

Active

American Electrical Inc.

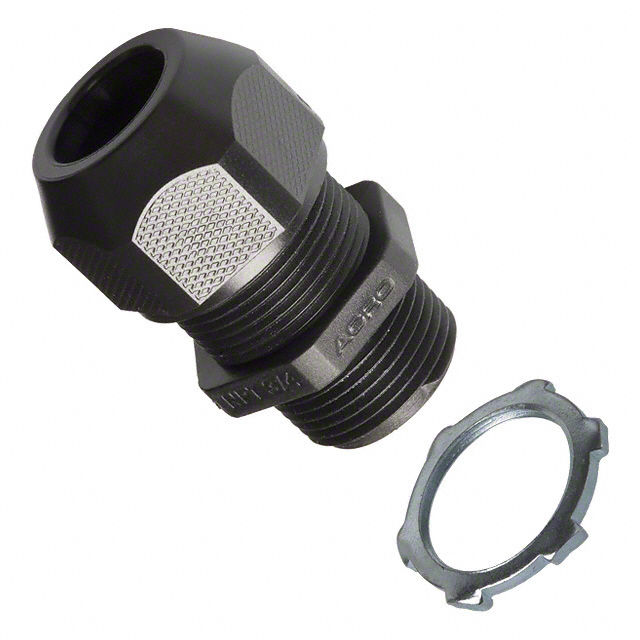

CABLE GLAND 6.5-14MM 3/4" NPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKnockout Hole Sizes Datasheet

A1545.N0750.14

Active

American Electrical Inc.

CABLE GLAND 6.5-14MM 3/4" NPT

Deep-Dive with AI

DocumentsKnockout Hole Sizes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A1545.N0750.14

Color	Black
Includes	Sealing Ring
Ingress Protection	IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.256 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	3/4 NPT
Type	Cable Gland

1545 Series

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Panel Hole Size	Panel Hole Size	Material	Thread Length	Thread Length	Type	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
American Electrical Inc. A1545.11.10	0.157 in	4 mm	Black	Sealing Ring	0.394 "	10 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	18.6 mm	0.732 in	Polyamide (PA) Nylon	8 mm	0.315 in	Cable Gland	PG11
American Electrical Inc. A1545.42.38	1.102 in	28 mm	Black	Sealing Ring	1.496 in	38 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	54 mm	2.126 in	Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	PG42
American Electrical Inc. A1545.21.14			Black	Sealing Ring			100 °C	-30 ░C	IP68 - Dust Tight Waterproof	28.3 mm	1.114 in	Polyamide (PA) Nylon	11 mm	0.433 in	Cable Gland	PG21	6.5 mm	0.256 in	14 mm	0.551 "
American Electrical Inc. A1545.N0750.14			Black	Sealing Ring			100 °C	-30 ░C	IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant			Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	3/4 NPT	6.5 mm	0.256 in	14 mm	0.551 "
American Electrical Inc. A1545.11.07			Black	Sealing Ring	0.276 in	7 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	18.6 mm	0.732 in	Polyamide (PA) Nylon	8 mm	0.315 in	Cable Gland	PG11	2 mm	0.079 in
American Electrical Inc. A1545.N0500.12			Black	Sealing Ring	0.472 in	12 mm	100 °C	-30 ░C	IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant			Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	1/2" NPT	5.5 mm	0.217 in
American Electrical Inc. A1545.48.44			Black	Sealing Ring			100 °C	-30 ░C	IP68 - Dust Tight Waterproof	59.3 mm	2.338 in	Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	PG48	32 mm	1.26 "	44 mm	1.732 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.27
		10	$ 3.88
		25	$ 3.67
		50	$ 3.58
		100	$ 3.41
		250	$ 2.99
		500	$ 2.90
		1000	$ 2.48
		2500	$ 2.30
