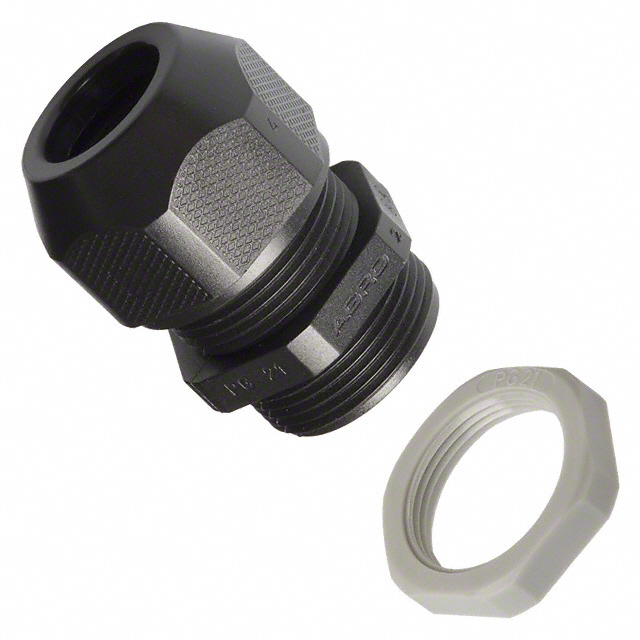

A1545.21.14

Active

American Electrical Inc.

CABLE GLAND 6.5-14MM PG21

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKnockout Hole Sizes Datasheet

A1545.21.14

Active

American Electrical Inc.

CABLE GLAND 6.5-14MM PG21

Deep-Dive with AI

DocumentsKnockout Hole Sizes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A1545.21.14

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.256 in
Panel Hole Size	28.3 mm
Panel Hole Size	1.114 in
Thread Length	0.433 in
Thread Length	11 mm
Thread Size	PG21
Type	Cable Gland

1545 Series

Part	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Panel Hole Size	Panel Hole Size	Material	Thread Length	Thread Length	Type	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
American Electrical Inc. A1545.11.10	0.157 in	4 mm	Black	Sealing Ring	0.394 "	10 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	18.6 mm	0.732 in	Polyamide (PA) Nylon	8 mm	0.315 in	Cable Gland	PG11
American Electrical Inc. A1545.42.38	1.102 in	28 mm	Black	Sealing Ring	1.496 in	38 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	54 mm	2.126 in	Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	PG42
American Electrical Inc. A1545.21.14			Black	Sealing Ring			100 °C	-30 ░C	IP68 - Dust Tight Waterproof	28.3 mm	1.114 in	Polyamide (PA) Nylon	11 mm	0.433 in	Cable Gland	PG21	6.5 mm	0.256 in	14 mm	0.551 "
American Electrical Inc. A1545.N0750.14			Black	Sealing Ring			100 °C	-30 ░C	IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant			Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	3/4 NPT	6.5 mm	0.256 in	14 mm	0.551 "
American Electrical Inc. A1545.11.07			Black	Sealing Ring	0.276 in	7 mm	100 °C	-30 ░C	IP68 - Dust Tight Waterproof	18.6 mm	0.732 in	Polyamide (PA) Nylon	8 mm	0.315 in	Cable Gland	PG11	2 mm	0.079 in
American Electrical Inc. A1545.N0500.12			Black	Sealing Ring	0.472 in	12 mm	100 °C	-30 ░C	IP54/IP68 - Dust Protected Dust Tight Waterproof Water Resistant			Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	1/2" NPT	5.5 mm	0.217 in
American Electrical Inc. A1545.48.44			Black	Sealing Ring			100 °C	-30 ░C	IP68 - Dust Tight Waterproof	59.3 mm	2.338 in	Polyamide (PA) Nylon	15 mm	0.591 in	Cable Gland	PG48	32 mm	1.26 "	44 mm	1.732 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 3.54
		10	$ 3.21
		25	$ 3.04
		50	$ 2.97
		100	$ 2.83
		250	$ 2.47
		500	$ 2.40
		1000	$ 2.05
		2500	$ 1.91
