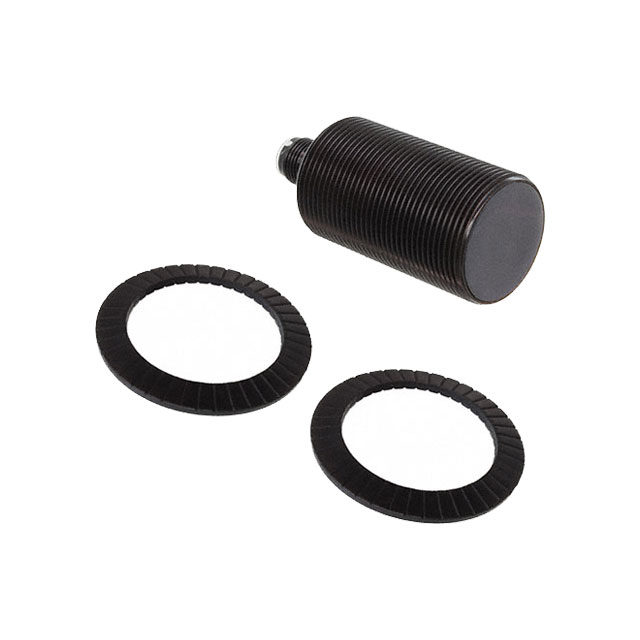

NBB10-30GM50-E2

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 10 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

NBB10-30GM50-E2

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 10 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB10-30GM50-E2

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	0.394 in
Sensing Distance	10 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB10 Series

Part	Shielding	Output Type	Sensor Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Material - Body	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensing Distance	Sensing Distance	Indicator [custom]
PEPPERL+FUCHS NBB10-30GM60-AR-Y909926
PEPPERL+FUCHS NBB10-30GM50-WS	Unshielded	SCR-NO 2-Wire	Inductive	Cable	20 VDC	253 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2 5M	Unshielded	PNP-NO 3-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-WS-T-V93
PEPPERL+FUCHS NBB10-30GM60-A2	Unshielded	NPN-NC/NO 4-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM40-Z0	Unshielded	SCR-NO 2-Wire	Inductive	Cable	5 V	60 V	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2	Unshielded	PNP-NO 3-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-WS-V12	Unshielded	SCR-NO 2-Wire	Inductive	Connector	20 VDC	253 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2-V1	Unshielded	PNP-NO 3-Wire	Inductive	Connector	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-40 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM40-Z0-V1	Unshielded	SCR-NO 2-Wire	Inductive	Connector	5 V	60 V	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.40
		5	$ 109.15
		10	$ 101.44
		25	$ 92.09
		50	$ 85.59
		100	$ 81.94
Newark	Each	1	$ 137.27
		10	$ 124.91
		25	$ 120.80

Description

General part information

NBB10 Series

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 10 MM, CYLINDRICAL, PNP, 10 TO 30 VDC, PRE-WIRED

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
