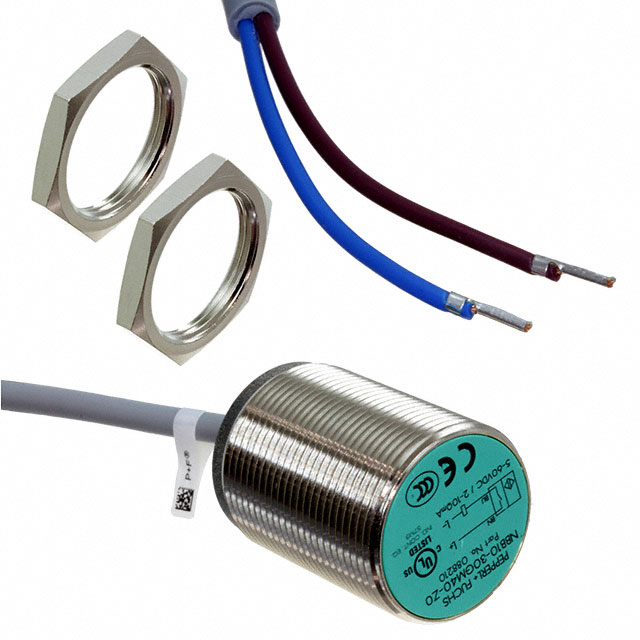

NBB10-30GM40-Z0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 20MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB10-30GM40-Z0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 20MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB10-30GM40-Z0

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	SCR-NO, 2-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	0.394 in
Sensing Distance	10 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	60 V
Voltage - Supply [Min]	5 V

NBB10 Series

Part	Shielding	Output Type	Sensor Type	Termination Style	Voltage - Supply [Min]	Voltage - Supply [Max]	Material - Body	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensing Distance	Sensing Distance	Indicator [custom]
PEPPERL+FUCHS NBB10-30GM60-AR-Y909926
PEPPERL+FUCHS NBB10-30GM50-WS	Unshielded	SCR-NO 2-Wire	Inductive	Cable	20 VDC	253 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2 5M	Unshielded	PNP-NO 3-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-WS-T-V93
PEPPERL+FUCHS NBB10-30GM60-A2	Unshielded	NPN-NC/NO 4-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM40-Z0	Unshielded	SCR-NO 2-Wire	Inductive	Cable	5 V	60 V	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2	Unshielded	PNP-NO 3-Wire	Inductive	Cable	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-WS-V12	Unshielded	SCR-NO 2-Wire	Inductive	Connector	20 VDC	253 VDC	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM50-E2-V1	Unshielded	PNP-NO 3-Wire	Inductive	Connector	10 VDC	30 VDC	Nickel-Plated Brass	IP67	70 °C	-40 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED
PEPPERL+FUCHS NBB10-30GM40-Z0-V1	Unshielded	SCR-NO 2-Wire	Inductive	Connector	5 V	60 V	Nickel-Plated Brass	IP67	70 °C	-25 °C	Cylinder Threaded - M30	0.394 in	10 mm	LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 112.94
		5	$ 105.03
		10	$ 102.09
		25	$ 98.56
		50	$ 96.14
		100	$ 93.92

Description

General part information

NBB10 Series

INDUCTIVE SEN 20MM PNP

Documents

Technical documentation and resources
