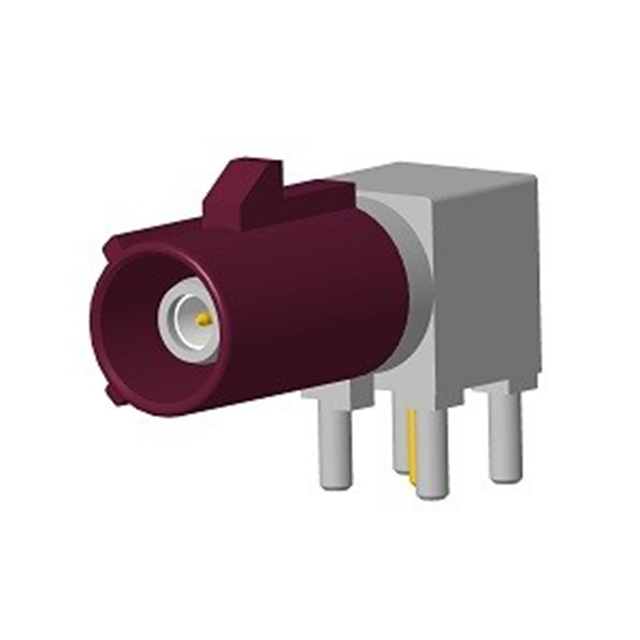

FA1-NDRP-PCBT10

Active

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Active

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NDRP-PCBT10

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code D
Frequency - Max [Max]	6000 MHz
Housing Color	Claret, Violet
Impedance	50 Ohms
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

Part	Center Contact Plating	Number of Ports	Impedance	Contact Termination	Mounting Type	Body Finish	Dielectric Material	Insertion Loss	Body Material	Includes	Housing Color	Connector Type	Frequency - Max [Max]	Shield Termination	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Center Contact Material	Features
Amphenol RF FA1-NDRP-PCB-9	Gold	1	50 Ohms	Solder	Through Hole Right Angle	Tin	Polytetrafluoroethylene (PTFE)	0.3 dB	Zinc Die Cast	1 Connector 1 Housing	Claret Violet	Male Pin Plug	6000 MHz	Solder	Fakra SMB	125 °C	-65 ░C	Locking Ramp	Brass	Code D
Amphenol RF FA1-NDRP-PCB-8A	Gold	1	50 Ohms	Solder	Through Hole Right Angle	Tin	Polytetrafluoroethylene (PTFE)		Zinc Die Cast		Claret Violet	Male Pin Plug	6000 MHz	Solder	Fakra SMB	125 °C	-65 ░C	Locking Ramp	Brass	Code D
Amphenol RF FA1-NDRP-PCBT10	Gold	1	50 Ohms	Solder	Through Hole Right Angle	Tin	Polytetrafluoroethylene (PTFE)		Zinc Die Cast		Claret Violet	Male Pin Plug	6000 MHz	Solder	Fakra SMB	100 °C	-40 °C	Locking Ramp	Brass	Code D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.41

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
