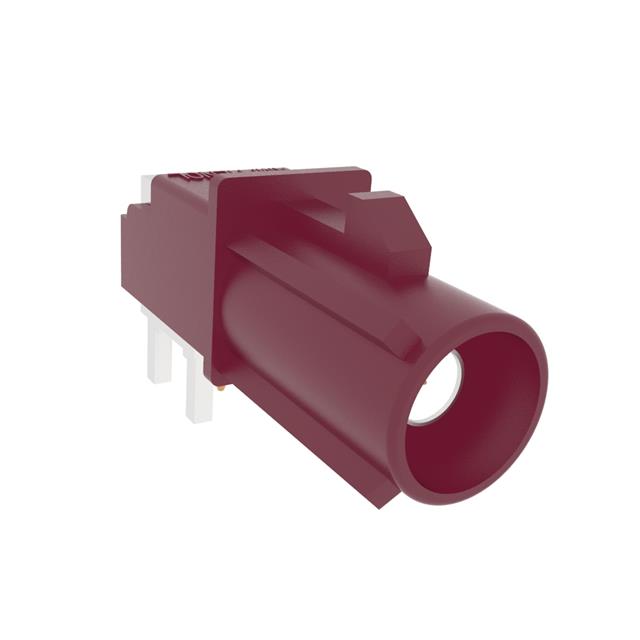

FA1-NDRP-PCB-8A
ActiveAmphenol RF
FAKRA GEN 1 PCB THROUGH HOLE RIG
Deep-Dive with AI
Search across all available documentation for this part.
FA1-NDRP-PCB-8A
ActiveAmphenol RF
FAKRA GEN 1 PCB THROUGH HOLE RIG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FA1-NDRP-PCB-8A |
|---|---|
| Body Finish | Tin |
| Body Material | Zinc Die Cast |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMB, Fakra |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code D |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Claret, Violet |
| Impedance | 50 Ohms |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.13 | |
| 10 | $ 3.75 | |||
| 25 | $ 3.56 | |||
| 50 | $ 3.47 | |||
| 100 | $ 3.31 | |||
| Tray | 250 | $ 1.95 | ||
Description
General part information
FA1-NDRP Series
SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
Documents
Technical documentation and resources
No documents available
