UCC383T-5G3

Obsolete

Texas Instruments

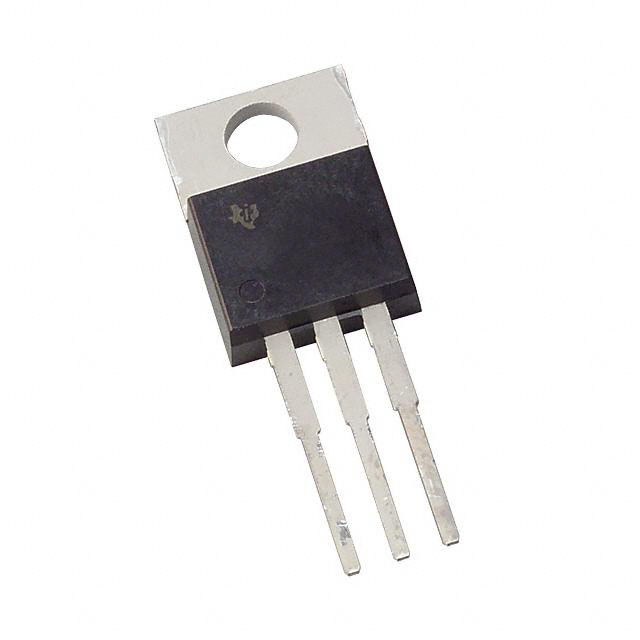

IC REG LINEAR 5V 3A TO220-3

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UCC383T-5G3

Obsolete

Texas Instruments

IC REG LINEAR 5V 3A TO220-3

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC383T-5G3

Current - Output	3 A
Current - Quiescent (Iq)	650 µA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-220-3
Protection Features	Under Voltage Lockout (UVLO), Reverse Polarity, Over Temperature, Short Circuit
Supplier Device Package	TO-220-3
Voltage - Input (Max) [Max]	9 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	0.6 V

UCC383 Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Type	Operating Temperature [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Current - Supply	Number of Outputs	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Current - Output	Output Configuration	Protection Features	Voltage - Output (Max) [Max]	Output Type	Number of Regulators	Voltage Dropout (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)
Texas Instruments UCC3837DTR	12 V	2.2 V	Positive Adjustable	70 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.2 mA	1	8-SOIC
Texas Instruments UCC383T-ADJ				70 °C	TO-220-5			Through Hole			TO-220-5	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC3837DG4	12 V	2.2 V	Positive Adjustable	70 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.2 mA	1	8-SOIC
Texas Instruments UCC383TDTR-ADJG3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDKTTT-ADJG3				70 °C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			Surface Mount			TO-263 (DDPAK-5)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDTR-3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	1 V	1.81 mOhm	3.3 V
Texas Instruments UCC383TDKTTT-ADJ				70 °C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			Surface Mount			TO-263 (DDPAK-5)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDKTTT-5				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	0.6 V	1.81 mOhm	5 V
Texas Instruments UCC383T-5G3				70 °C	TO-220-3			Through Hole			TO-220-3	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	0.6 V	1.81 mOhm	5 V
Texas Instruments UCC383TDKTTT-3G3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	1 V	1.81 mOhm	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UCC383 Series

Linear Voltage Regulator IC Positive Fixed 1 Output 3A TO-220-3
