UCC383T-ADJ

Active

Texas Instruments

3-A, 9-V, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM 0°C TO 70°C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUCC283-x, UCC383-x: Low-Dropout 3-A Linear Regulator Family datasheet (Rev. B)Datasheet

UCC383T-ADJ

Active

Texas Instruments

3-A, 9-V, ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH REVERSE CURRENT PROTECTION FROM 0°C TO 70°C

Deep-Dive with AI

DocumentsUCC283-x, UCC383-x: Low-Dropout 3-A Linear Regulator Family datasheet (Rev. B)Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UCC383T-ADJ

Current - Output	3 A
Current - Quiescent (Iq)	650 µA
Mounting Type	Through Hole
Number of Regulators	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Output Configuration	Positive
Output Type	Adjustable

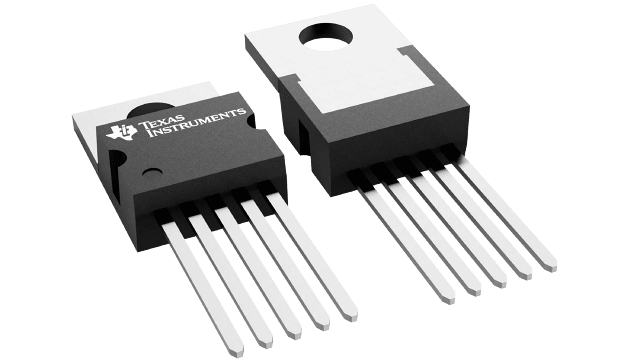

Package / Case	TO-220-5
Protection Features	Under Voltage Lockout (UVLO), Reverse Polarity, Over Temperature, Short Circuit
Supplier Device Package	TO-220-5
Voltage - Input (Max) [Max]	9 V
Voltage - Output (Max) [Max]	8.5 V
Voltage Dropout (Max) [Max]	0.6 V

UCC383 Series

Part	Voltage - Input [Max]	Voltage - Input [Min]	Type	Operating Temperature [Max]	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Current - Supply	Number of Outputs	Supplier Device Package	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Current - Output	Output Configuration	Protection Features	Voltage - Output (Max) [Max]	Output Type	Number of Regulators	Voltage Dropout (Max) [Max]	Output Type	Voltage - Output (Min/Fixed)
Texas Instruments UCC3837DTR	12 V	2.2 V	Positive Adjustable	70 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.2 mA	1	8-SOIC
Texas Instruments UCC383T-ADJ				70 °C	TO-220-5			Through Hole			TO-220-5	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC3837DG4	12 V	2.2 V	Positive Adjustable	70 °C	8-SOIC	3.9 mm	0.154 in	Surface Mount	1.2 mA	1	8-SOIC
Texas Instruments UCC383TDTR-ADJG3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDKTTT-ADJG3				70 °C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			Surface Mount			TO-263 (DDPAK-5)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDTR-3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	1 V	1.81 mOhm	3.3 V
Texas Instruments UCC383TDKTTT-ADJ				70 °C	D2PAK (5 Leads + Tab) TO-263-6 TO-263BA			Surface Mount			TO-263 (DDPAK-5)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	8.5 V	Adjustable	1	0.6 V
Texas Instruments UCC383TDKTTT-5				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	0.6 V	1.81 mOhm	5 V
Texas Instruments UCC383T-5G3				70 °C	TO-220-3			Through Hole			TO-220-3	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	0.6 V	1.81 mOhm	5 V
Texas Instruments UCC383TDKTTT-3G3				70 °C	D2PAK (3 Leads + Tab) TO-263-4 TO-263AA			Surface Mount			TO-263 (DDPAK-3)	650 µA	9 V	3 A	Positive	Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)			1	1 V	1.81 mOhm	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.75
		10	$ 7.91
		50	$ 7.54
		100	$ 6.55
		250	$ 6.25
		500	$ 5.70
		1000	$ 4.96
Texas Instruments	TUBE	1	$ 7.72
		100	$ 6.29
		250	$ 4.95
		1000	$ 4.20

Description

General part information

UCC383 Series

The UCC283–3/–5/–ADJ family of positive linear series pass voltage regulators are tailored for low-drop-out applications where low quiescent power is important. Fabricated with a BiCMOS technology ideally suited for low input-to-output differential applications, the UCC283–5 passes 3 A while requiring only 0.45 V of typical input voltage headroom (ensured 0.6-V dropout).

These regulators include reverse voltage sensing that prevents current in the reverse direction. Quiescent current is always less than 650 µA. These devices have been internally compensated in such a way that the need for a minimum output capacitor has been eliminated.

UCC283–3 and UCC283–5 versions are in 3-lead packages and have preset outputs at 3.3 V and 5.0 V respectively. The output voltage is regulated to 1.5% at room temperature. The UCC283–ADJ version, in a 5-lead package, regulates the output voltage programmed by an external resistor ratio.
