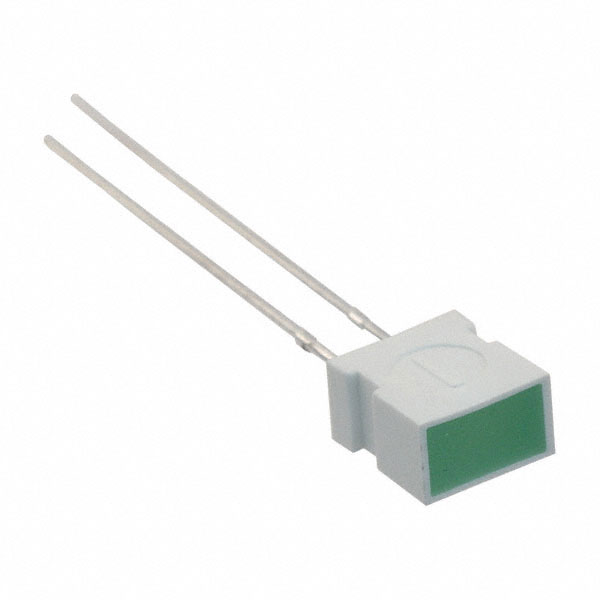

WP1043GD

Active

Kingbright

LED LGT BAR 6.15X3.65MM GRN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP1043GD

Active

Kingbright

LED LGT BAR 6.15X3.65MM GRN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP1043GD

Color	Green
Configuration	Bar - Single, SIP
Current	25 mA
Lens Size [x]	6.15 mm
Lens Size [y]	3.65 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	4 mcd
Mounting Type	Through Hole
Viewing Angle	100 °
Wavelength - Peak	568 nm

WP1043 Series

Part	Lens Size [y]	Lens Size [x]	Lens Style	Mounting Type	Lens Type	Current	Millicandela Rating	Viewing Angle	Configuration	Color	Wavelength - Peak	Voltage Rating	Wavelength - Peak [custom]
Kingbright WP1043GD	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	25 mA	4 mcd	100 °	Bar - Single SIP	Green	568 nm
Kingbright WP1043SRD	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	30 mA	70 mcd	100 °	Bar - Single SIP	Red		1.85 V	640 nm
Kingbright WP1043ID	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	30 mA	7.5 mcd	100 °	Bar - Single SIP	Red		2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.95
		10	$ 0.62
		500	$ 0.40
		1000	$ 0.32
		5000	$ 0.29
		10000	$ 0.28

Description

General part information

WP1043 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Green Diffused, Tinted 2.2V 25mA Rectangle with Flat Top 6.15mm x 3.65mm Through Hole
