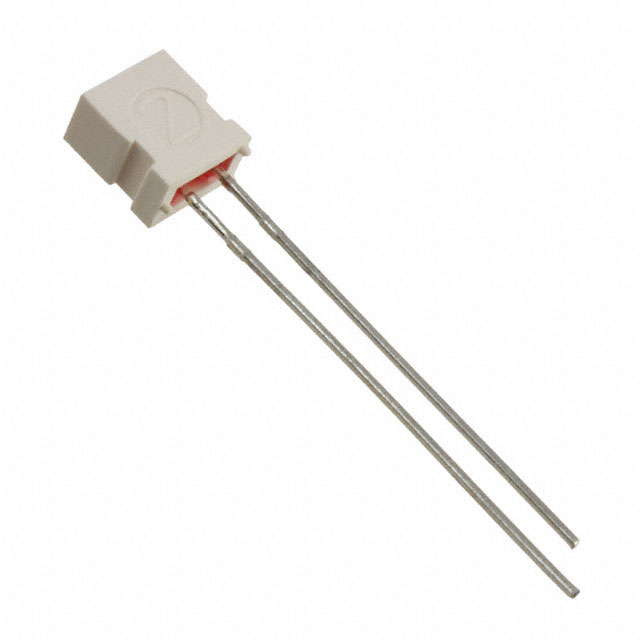

WP1043ID

Active

Kingbright

SINGLE COLOR LED, HIGH EFFICIENCY RED, DIFFUSED RED, 5.58MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP1043ID

Active

Kingbright

SINGLE COLOR LED, HIGH EFFICIENCY RED, DIFFUSED RED, 5.58MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP1043ID

Color	Red
Configuration	Bar - Single, SIP
Current	30 mA
Lens Size [x]	6.15 mm
Lens Size [y]	3.65 mm
Lens Style	Rectangle with Flat Top
Lens Type	Tinted, Diffused
Millicandela Rating	7.5 mcd
Mounting Type	Through Hole
Viewing Angle	100 °
Voltage Rating	2 V

WP1043 Series

Part	Lens Size [y]	Lens Size [x]	Lens Style	Mounting Type	Lens Type	Current	Millicandela Rating	Viewing Angle	Configuration	Color	Wavelength - Peak	Voltage Rating	Wavelength - Peak [custom]
Kingbright WP1043GD	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	25 mA	4 mcd	100 °	Bar - Single SIP	Green	568 nm
Kingbright WP1043SRD	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	30 mA	70 mcd	100 °	Bar - Single SIP	Red		1.85 V	640 nm
Kingbright WP1043ID	3.65 mm	6.15 mm	Rectangle with Flat Top	Through Hole	Diffused Tinted	30 mA	7.5 mcd	100 °	Bar - Single SIP	Red		2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74
		10	$ 0.48
		100	$ 0.31
		1000	$ 0.25
		5000	$ 0.22
		10000	$ 0.22

Description

General part information

WP1043 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - Single, SIP Red Diffused, Tinted 2V 30mA Rectangle with Flat Top 6.15mm x 3.65mm Through Hole
