342-096-559-207

Active

EDAC Inc.

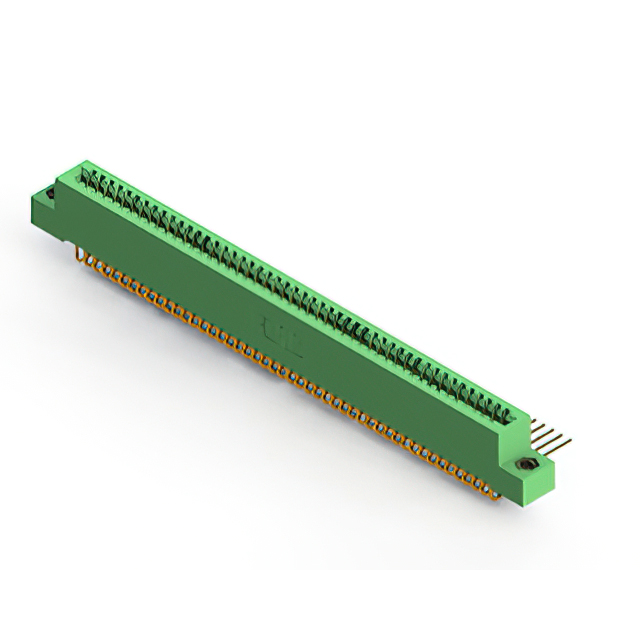

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 96 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

342-096-559-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 96 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-096-559-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	96
Number of Positions/Bay/Row [custom]	48
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2

342-096 Series

Part	Termination	Termination Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Card Type	Read Out	Gender	Mounting Type	Material - Insulation	Pitch [x]	Pitch [x]	Contact Type	Number of Positions/Bay/Row [custom]	Color	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Features
EDAC Inc. 342-096-542-212	Wire Wrap	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-541-203	Wire Wrap	2	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-558-212	Solder Wire Wrap	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole Right Angle	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-523-202	Solder	2	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-559-207	Solder Wire Wrap	2		Flush Mount M3 Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole Right Angle	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-524-208	Solder	2		4-40 Flush Mount Threaded Insert Top Opening		1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-520-204	Solder	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-556-203	Solder	2	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Board Edge Straddle Mount	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold	Card Extender
EDAC Inc. 342-096-523-201	Solder	2				1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold
EDAC Inc. 342-096-544-203	Wire Wrap	2	2.95 mm	Floating Bobbin Flush Mount	0.116 in	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Non Specified - Dual Edge	Dual	Female	Through Hole	Polyester Thermoplastic	2.54 mm	0.1 in	Cantilever	48	Green	96	10 Áin	0.25 Ám	Copper Alloy	-40 °C	105 ░C	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.11
Newark	Each	1	$ 21.36
		100	$ 16.07
		250	$ 13.97
		500	$ 12.06
		1000	$ 8.88

Description

General part information

342-096 Series

96 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
