SCA830-D06-1

Active

Murata Power Solutions Inc.

ACCELEROMETER 2G SPI 12SMD

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ACCELEROMETER 2G SPI 12SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Bandwidth	Axis	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating [Max]	Voltage Rating [Min]	Measuring Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Utilized IC / Part	Supplied Contents	Sensing Range	Sensitivity	Qualification	Sensitivity (LSB/g)	Grade	Acceleration Range [Max]	Acceleration Range [Min]	Bandwidth [Min]	Bandwidth [Max]	Output Type	Supplier Device Package	Type	Mounting Type	Sensing Range [Min]	Sensing Range [Max]
Murata Power Solutions Inc. SCA830-D07-1	12-SMD Module	6.25 Hz	X or Y	SPI	-40 °C	125 °C	3.6 V	3 V	90 °
Murata Power Solutions Inc. SCA830-D07-PCB				SPI						3.6 V	3 V	Inclinometer	SCA830-D07	Board(s)	1 g	32000 counts/g
Murata Power Solutions Inc. SCA830-D06-1	12-SMD No Lead		Y		-40 °C	125 °C				3.6 V	3 V						AEC-Q100	900 LSB/g	Automotive	2 g	-2 g	30 Hz	80 Hz	SPI	12-SMD	Digital	Surface Mount
Murata Power Solutions Inc. SCA830-D06-PCB				SPI						3.6 V	3 V	Accelerometer 1 Axis	SCA830-D06	Board(s)														-2 g	2 g
Murata Power Solutions Inc. SCA830-D07-10	12-SMD	250 Hz	X or Y	SPI	-40 °C	125 °C	3.6 V	3 V	180 °							32000 counts/g	AEC-Q100		Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

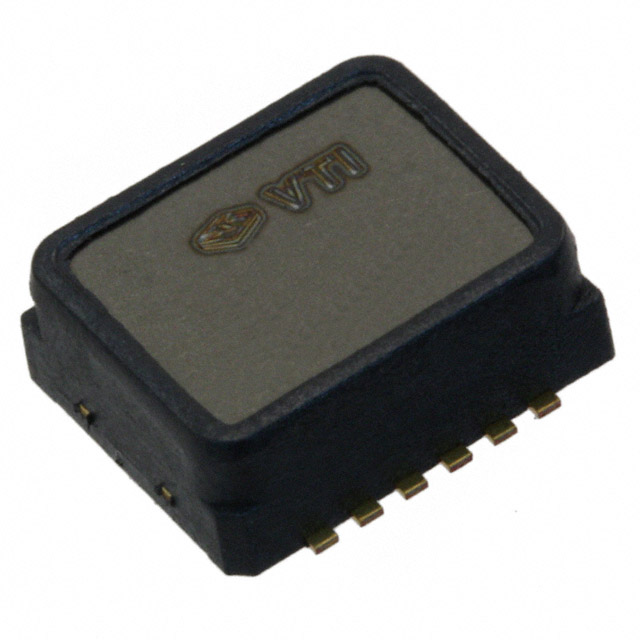

Accelerometer Y Axis ±2g 30Hz ~ 80Hz 12-SMD
