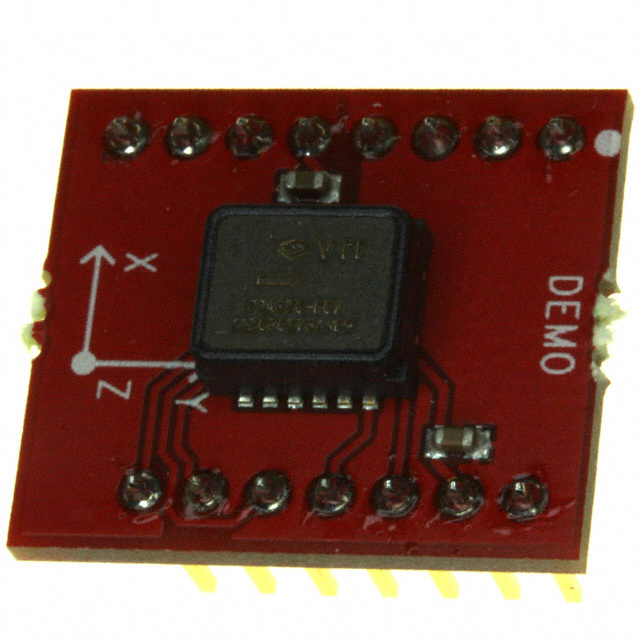

SCA830-D07-PCB

Active

Murata Power Solutions Inc.

EVAL BOARD INCLINOMETER Y-AXIS

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

EVAL BOARD INCLINOMETER Y-AXIS

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Bandwidth	Axis	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating [Max]	Voltage Rating [Min]	Measuring Range	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Utilized IC / Part	Supplied Contents	Sensing Range	Sensitivity	Qualification	Sensitivity (LSB/g)	Grade	Acceleration Range [Max]	Acceleration Range [Min]	Bandwidth [Min]	Bandwidth [Max]	Output Type	Supplier Device Package	Type	Mounting Type	Sensing Range [Min]	Sensing Range [Max]
Murata Power Solutions Inc. SCA830-D07-1	12-SMD Module	6.25 Hz	X or Y	SPI	-40 °C	125 °C	3.6 V	3 V	90 °
Murata Power Solutions Inc. SCA830-D07-PCB				SPI						3.6 V	3 V	Inclinometer	SCA830-D07	Board(s)	1 g	32000 counts/g
Murata Power Solutions Inc. SCA830-D06-1	12-SMD No Lead		Y		-40 °C	125 °C				3.6 V	3 V						AEC-Q100	900 LSB/g	Automotive	2 g	-2 g	30 Hz	80 Hz	SPI	12-SMD	Digital	Surface Mount
Murata Power Solutions Inc. SCA830-D06-PCB				SPI						3.6 V	3 V	Accelerometer 1 Axis	SCA830-D06	Board(s)														-2 g	2 g
Murata Power Solutions Inc. SCA830-D07-10	12-SMD	250 Hz	X or Y	SPI	-40 °C	125 °C	3.6 V	3 V	180 °							32000 counts/g	AEC-Q100		Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.86

General part information

SCA830-D07 - Inclinometer Sensor Evaluation Board
