S9693E-08

Unknown

Sullins Connector Solutions

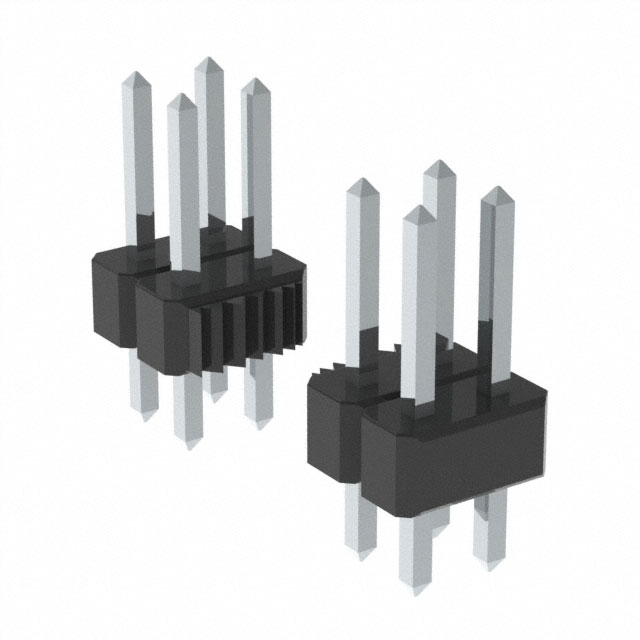

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

S9693E-08

Unknown

Sullins Connector Solutions

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S9693E-08

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	0.45 "
Overall Contact Length	11.43 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

S9693 Series

Part	Number of Positions	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Connector Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions Loaded	Insulation Color	Style	Contact Type	Number of Positions
Sullins Connector Solutions S9693E-05	10	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin
Sullins Connector Solutions S9693E-02	4	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin
Sullins Connector Solutions S9693E-12	24	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin
Sullins Connector Solutions S9693E-06	12	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin
Sullins Connector Solutions S9693E-03	6	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin
Sullins Connector Solutions S9693E-08		Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin	16
Sullins Connector Solutions S9693E-01	2	Solder	2.54 mm	0.1 in	Square	Breakaway Header	3 A			Phosphor Bronze	Through Hole	2	0.12 in	3.05 mm	Unshrouded	125 °C	-65 ░C	UL94 V-0	Push-Pull	0.1 in	2.54 mm	Tin	Liquid Crystal Polymer (LCP)	0.23 in	5.84 mm	0.45 "	11.43 mm	All	Black	Board to Board Cable	Male Pin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.37

Description

General part information

S9693 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
