S9693E-03
UnknownSullins Connector Solutions

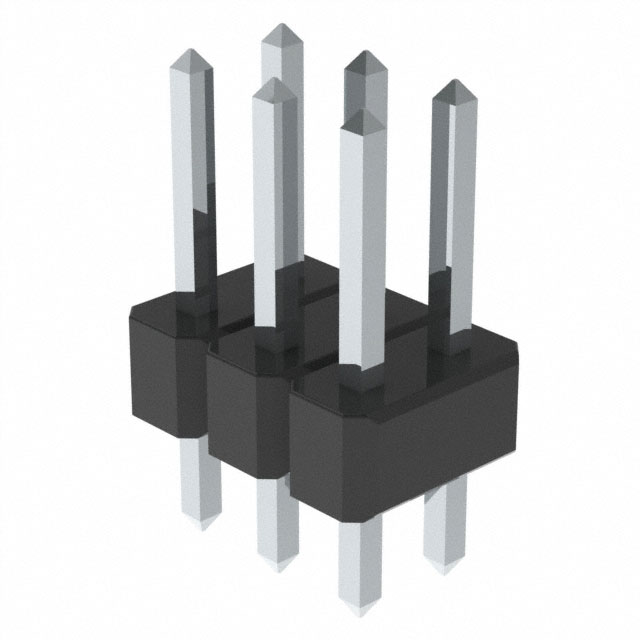

CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
S9693E-03
UnknownSullins Connector Solutions
CONN HEADER VERT 6POS 2.54MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S9693E-03 |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.1 in |
| Insulation Height | 2.54 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Contact Length | 0.45 " |
| Overall Contact Length | 11.43 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
S9693 Series
| Part | Number of Positions | Termination | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Connector Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Material | Mounting Type | Number of Rows | Contact Length - Post [x] | Contact Length - Post [x] | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Fastening Type | Insulation Height | Insulation Height | Contact Finish - Post | Insulation Material | Contact Length - Mating [x] | Contact Length - Mating | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Insulation Color | Style | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 10 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | |
Sullins Connector Solutions | 4 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | |
Sullins Connector Solutions | 24 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | |
Sullins Connector Solutions | 12 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | |
Sullins Connector Solutions | 6 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | |
Sullins Connector Solutions | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | 0.1 in | 2.54 mm | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin | 16 | |
Sullins Connector Solutions | 2 | Solder | 2.54 mm | 0.1 in | Square | Breakaway Header | 3 A | Phosphor Bronze | Through Hole | 2 | 0.12 in | 3.05 mm | Unshrouded | 125 °C | -65 ░C | UL94 V-0 | Push-Pull | 0.1 in | 2.54 mm | Tin | Liquid Crystal Polymer (LCP) | 0.23 in | 5.84 mm | 0.45 " | 11.43 mm | All | Black | Board to Board Cable | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S9693 Series
Connector Header Through Hole 6 position 0.100" (2.54mm)
