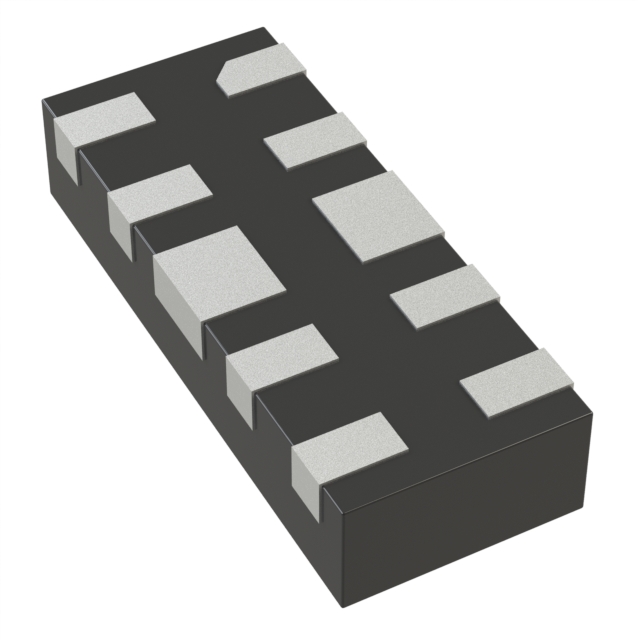

SZESD8704MTWTAG

Active

ON Semiconductor

ESD SUPPRESSOR DIODE ARRAY UNI-DIR 3.3V AUTOMOTIVE 10-PIN WDFNW T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-515AH-WDFNW10 2.5x1.0, 0.5P +1

SZESD8704MTWTAG

Active

ON Semiconductor

ESD SUPPRESSOR DIODE ARRAY UNI-DIR 3.3V AUTOMOTIVE 10-PIN WDFNW T/R

Deep-Dive with AI

DocumentsDatasheet Package Drawing-515AH-WDFNW10 2.5x1.0, 0.5P +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SZESD8704MTWTAG

Applications	USB
Capacitance @ Frequency	0.31 pF
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C
Package / Case	10-WFDFN
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	10-WDFNW (2.5x1)
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Reverse Standoff (Typ)	3.3 V

SZESD8004 Series

High Speed Data Line Protection, Unidirectional (3.3 V – USB 3.x)

Part	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Grade	Capacitance @ Frequency	Supplier Device Package	Voltage - Clamping (Max) @ Ipp	Type	Package / Case	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Qualification
ON Semiconductor SZESD8004MUTAG	4	5.5 V	Automotive	0.3 pF	10-UDFN (2.5x1)	8 V	Zener	10-UFDFN	USB	Surface Mount	125 ¯C	-55 °C	16 A	3.3 V
ON Semiconductor ESD8704MUTAG	4			0.3 pF	10-UDFN (2.5x1)		Zener	10-UFDFN	General Purpose	Surface Mount	125 ¯C	-55 °C		3.3 V
ON Semiconductor SZESD8704MTWTAG	4		Automotive	0.31 pF	10-WDFNW (2.5x1)		Zener	10-WFDFN	USB	Surface Mount	125 ¯C	-55 °C		3.3 V	AEC-Q101
ON Semiconductor ESD8004MUTAG	4	5.5 V		0.3 pF	10-UDFN (2.5x1)	8 V	Zener	10-UFDFN	USB	Surface Mount	125 ¯C	-55 °C	16 A	3.3 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.52
		10	$ 0.41
		100	$ 0.24
		500	$ 0.23
		1000	$ 0.15
	Digi-Reel®	1	$ 0.52
		10	$ 0.41
		100	$ 0.24
		500	$ 0.23
		1000	$ 0.15
	Tape & Reel (TR)	3000	$ 0.14
		6000	$ 0.14
		9000	$ 0.12
		30000	$ 0.12
		75000	$ 0.11
Newark	Each (Supplied on Full Reel)	3000	$ 0.18
		6000	$ 0.15
		12000	$ 0.14
		18000	$ 0.13
		30000	$ 0.12
ON Semiconductor	N/A	1	$ 0.12

Description

General part information

SZESD8004 Series

The ESD8704 is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0/3.1.
