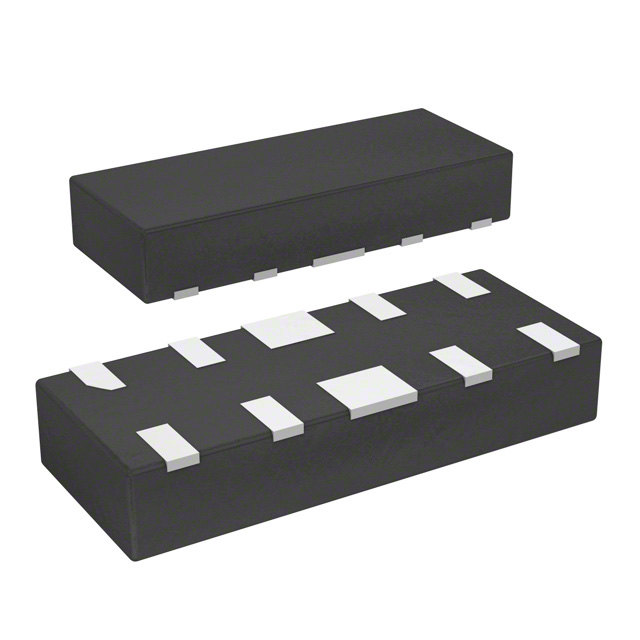

ESD8704MUTAG
ActiveHIGH SPEED DATA LINE PROTECTION, UNIDIRECTIONAL (3.3 V – USB 3.X)
Deep-Dive with AI
Search across all available documentation for this part.
ESD8704MUTAG
ActiveHIGH SPEED DATA LINE PROTECTION, UNIDIRECTIONAL (3.3 V – USB 3.X)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESD8704MUTAG |
|---|---|
| Applications | General Purpose |
| Capacitance @ Frequency | 0.3 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 10-UFDFN |
| Power Line Protection | False |
| Supplier Device Package | 10-UDFN (2.5x1) |
| Type | Zener |
| Unidirectional Channels [custom] | 4 |
| Voltage - Reverse Standoff (Typ) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Digi-Reel® | 1 | $ 0.53 | ||
| 10 | $ 0.33 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| Tape & Reel (TR) | 3000 | $ 0.12 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.10 | |||
| 15000 | $ 0.10 | |||
| 21000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.41 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.16 | |||
| ON Semiconductor | N/A | 1 | $ 0.09 | |
Description
General part information
SZESD8004 Series
The ESD8704 is designed to protect high speed data lines from ESD. Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0/3.1.
Documents
Technical documentation and resources
