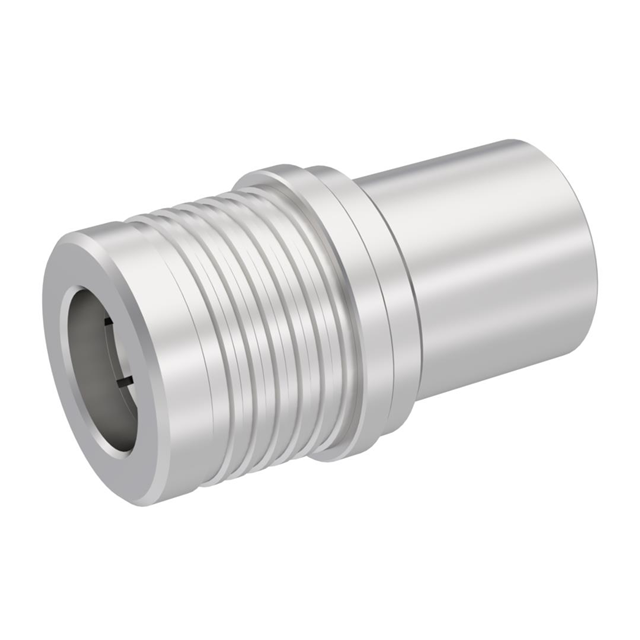

R404114000

Active

Radiall USA, Inc.

TERMINATION: QMA M 4GHZ 1W 50OHM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TERMINATION: QMA M 4GHZ 1W 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	R404114000

Body Finish	White Bronze
Body Material	Brass
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Finish	Connector Type	Body Material	Frequency - Max [Max]	Contact Material	Impedance	Mounting Type	Dielectric Material	Connector Style	Body Finish	Features
Radiall USA, Inc. R404115150	Gold	Female Socket Jack	Stainless Steel	18 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC
Radiall USA, Inc. R404111000	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel
Radiall USA, Inc. R404114000	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)		White Bronze
Radiall USA, Inc. R404110150	Gold	Male Pin Plug	Stainless Steel	18 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC
Radiall USA, Inc. R404111120	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel	Chain
Radiall USA, Inc. R404112000	Gold	Female Socket Jack	Brass	4 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.54

General part information

Terminator Coax Connector Plug, Male Pin QMA 50 Ohms
