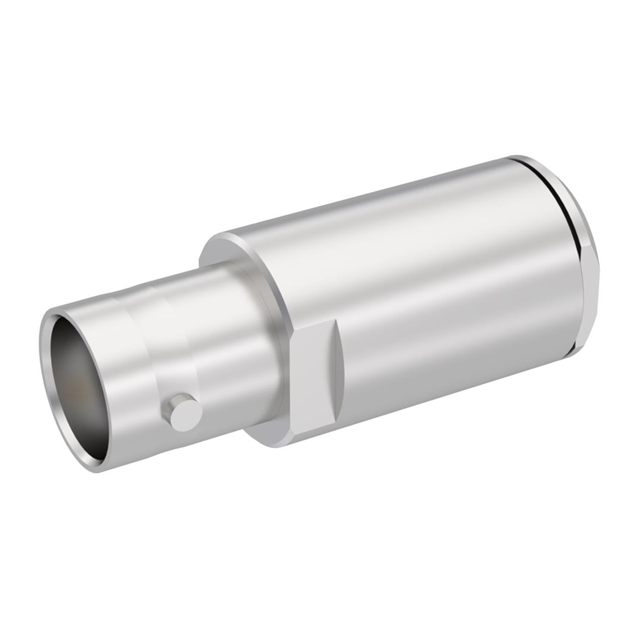

R404115150

Active

Radiall USA, Inc.

PRECISION TERMINATION: BNC F 18G

Search across all available documentation for this part.

Active

Radiall USA, Inc.

PRECISION TERMINATION: BNC F 18G

Technical Specifications

Parameters and characteristics for this part

Specification	R404115150

Body Material	Stainless Steel
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Contact Finish	Connector Type	Body Material	Frequency - Max [Max]	Contact Material	Impedance	Mounting Type	Dielectric Material	Connector Style	Body Finish	Features
Radiall USA, Inc. R404115150	Gold	Female Socket Jack	Stainless Steel	18 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC
Radiall USA, Inc. R404111000	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel
Radiall USA, Inc. R404114000	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)		White Bronze
Radiall USA, Inc. R404110150	Gold	Male Pin Plug	Stainless Steel	18 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC
Radiall USA, Inc. R404111120	Gold	Male Pin Plug	Brass	4 GHz	Brass	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel	Chain
Radiall USA, Inc. R404112000	Gold	Female Socket Jack	Brass	4 GHz	Beryllium Copper	50 Ohms	Cap Free Hanging	Polytetrafluoroethylene (PTFE)	BNC	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 343.39

General part information

Terminator Coax Connector Jack, Female Socket BNC 50 Ohms
