07190-24P

Active

Mechatronics Bearing Group

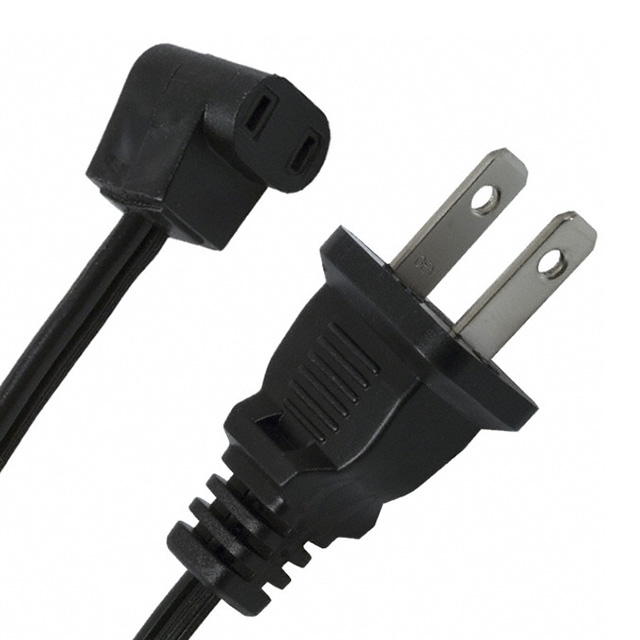

24" CORD WITH WALL PLUG

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

24" CORD WITH WALL PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	07190-24P

1st Connector	Fan Terminal Receptacle 90°, Right Angle
2nd Connector	NEMA 1-15 Plug
Fits Terminal Size [x]	4.1
Fits Terminal Size [y]	0.5
Length [x]	609.6 mm
Length [x]	24 in
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	Number of Conductors	Wire Gauge	Style	1st Connector	Fits Terminal Size [x]	Fits Terminal Size [y]	2nd Connector	Operating Temperature	Length [x]	Length [x]	Features	Length	Length
Mechatronics Bearing Group 07190-48	2	18 AWG	Female Receptacle to Cable	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C
Mechatronics Bearing Group 07190-48R	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C
Mechatronics Bearing Group 07190-24P	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	NEMA 1-15 Plug	105 C	609.6 mm	24 in
Mechatronics Bearing Group 07190-36R	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C			Red Tracer	91.44 cm	36 in
Mechatronics Bearing Group 07190-36	2	18 AWG	Female Receptacle to Cable	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C				91.44 cm	36 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 5.70

General part information

Fan Power Cord Fan Terminal Receptacle 90°, Right Angle 24.0" (609.6mm) NEMA 1-15 Plug
