07190-48R

Active

Mechatronics Bearing Group

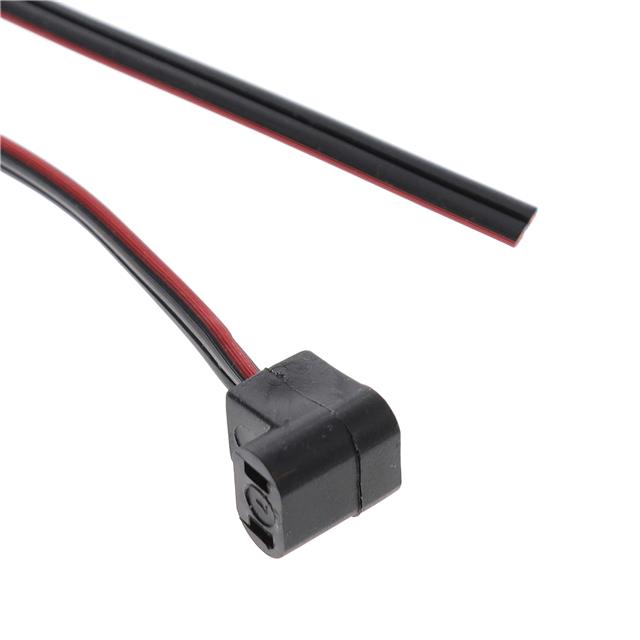

FAN CORD W/ RED TRACER 48"

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN CORD W/ RED TRACER 48"

Technical Specifications

Parameters and characteristics for this part

Specification	07190-48R

1st Connector	Fan Terminal Receptacle 90°, Right Angle
2nd Connector	Open Wires
Fits Terminal Size [x]	4.1
Fits Terminal Size [y]	0.5
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	Number of Conductors	Wire Gauge	Style	1st Connector	Fits Terminal Size [x]	Fits Terminal Size [y]	2nd Connector	Operating Temperature	Length [x]	Length [x]	Features	Length	Length
Mechatronics Bearing Group 07190-48	2	18 AWG	Female Receptacle to Cable	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C
Mechatronics Bearing Group 07190-48R	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C
Mechatronics Bearing Group 07190-24P	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	NEMA 1-15 Plug	105 C	609.6 mm	24 in
Mechatronics Bearing Group 07190-36R	2	18 AWG	Female Receptacle to Male Plug	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C			Red Tracer	91.44 cm	36 in
Mechatronics Bearing Group 07190-36	2	18 AWG	Female Receptacle to Cable	Fan Terminal Receptacle 90° Right Angle	4.1	0.5	Open Wires	105 C				91.44 cm	36 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 90°, Right Angle 48.0" (1.22m) Open Wires
