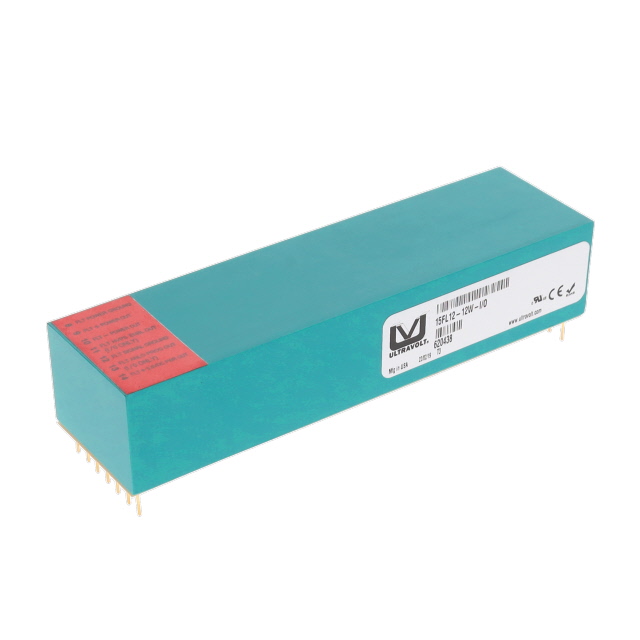

15FL12-12W-I/O

Active

ULTRAVOLT / Advanced Energy

FL-SERIES FLOATING-HOT-DECK POWE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

15FL12-12W-I/O

Active

ULTRAVOLT / Advanced Energy

FL-SERIES FLOATING-HOT-DECK POWE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	15FL12-12W-I/O

Applications	ITE (Commercial)
Approval Agency	CE, cURus, UL, cUL
Current - Output (Max)	10 mA, 1 A
Mounting Type	Through Hole
Number of Outputs	3
Package / Case	14-DIP Module
Power (Watts)	12 W
Type	Isolated Module
Voltage - Input (Max) [Max]	12 V
Voltage - Isolation	15000 VDC
Voltage - Output 1	12 V
Voltage - Output 2	-15 V
Voltage - Output 3	5.6 V

15FL12 Series

Isolated DC/DC Converters - Chassis Mount FL-Series Floating-Hot-Deck power supply, Triple output, 15kV HV isolation, +12Vdc input, +12Vdc primary output, -15/+5.6Vdc secondary outputs, 12W, Thru-hole/Chassis mount, Regulated, One up isolated control cha

Part	Voltage - Input (Min) [Min]	Power (Watts)	Package / Case	Approval Agency	Voltage - Output 2	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Mounting Type	Voltage - Input (Max) [Max]	Applications	Voltage - Output 3	Type	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)
ULTRAVOLT / Advanced Energy 15FL24-24W-I/O-RB-E	21.6 V	24 W	28-DIP Module	CE cURus	-15 V	15000 VDC	38.1 mm	33 mm	1.5 in	144.8 mm	1.3 "	5.7 "	3	Through Hole	26.4 V	ITE (Commercial)	5.6 V	Isolated Module	24 V	55 °C	-20 C	1 A 10 mA
ULTRAVOLT / Advanced Energy 15FL12-12W-I/O-M
ULTRAVOLT / Advanced Energy 15FL24-24W-I/O-M	21.6 V	24 W	14-DIP Module	CE cUL UL	-15 V	15000 VDC	38.1 mm	29.8 mm	1.5 in	144.8 mm	1.18 in	5.7 "	3	Through Hole	30 V	ITE (Commercial)	5.6 V	Isolated Module	24 V	55 °C	-20 C	1 A 10 mA
ULTRAVOLT / Advanced Energy 15FL24-24W-E	21.6 V	24 W	14-DIP Module	CE cURus	-15 V	15000 VDC							3	Through Hole	26.4 V	ITE (Commercial)	5.6 V	Isolated Module	24 V	55 °C	-20 C	1 A 10 mA
ULTRAVOLT / Advanced Energy 15FL12-12W-I/O-M-E	11.4 V	12 W	14-DIP Module	CE cURus	-15 V	15000 VDC							3	Through Hole	12.6 V	ITE (Commercial)	5.6 V	Isolated Module	12 V	55 °C	-20 C	1 A 10 mA
ULTRAVOLT / Advanced Energy 15FL24-24W-I/O-M-E
ULTRAVOLT / Advanced Energy 15FL12-12W-M
ULTRAVOLT / Advanced Energy 15FL12-12W-E	11.4 V	12 W	14-DIP Module	CE cURus	-15 V	15000 VDC							3	Through Hole	12.6 V	ITE (Commercial)	5.6 V	Isolated Module	12 V	55 °C	-20 C	1 A 10 mA
ULTRAVOLT / Advanced Energy 15FL12-12W-M-H
ULTRAVOLT / Advanced Energy 15FL12-12W-I/O		12 W	14-DIP Module	CE cUL cURus UL	-15 V	15000 VDC							3	Through Hole	12 V	ITE (Commercial)	5.6 V	Isolated Module	12 V			1 A 10 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 933.31
		5	$ 898.40
		10	$ 883.74
