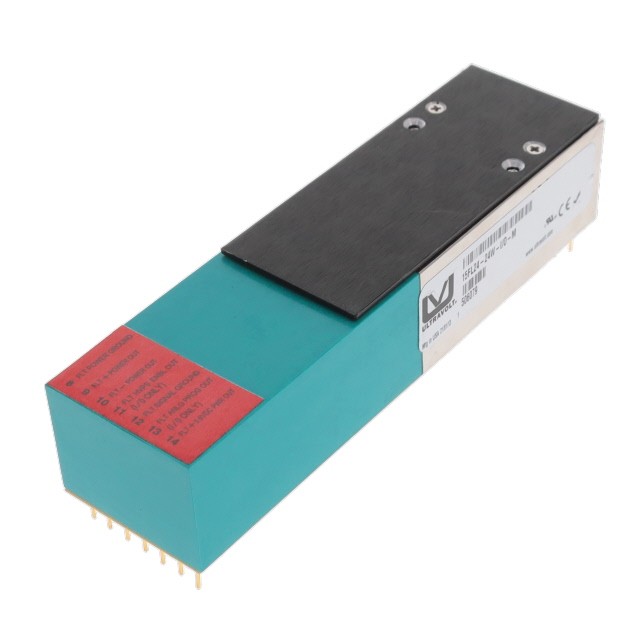

15FL24-24W-I/O-M
ActiveISOLATED DC/DC CONVERTERS - CHASSIS MOUNT FL-SERIES FLOATING-HOT-DECK POWER SUPPLY, TRIPLE OUTPUT, 15KV HV ISOLATION, +24VDC INPUT, +24VDC PRIMARY OUTPUT, -15/+5.6VDC SECONDARY OUTPUTS, 24W, THRU-HOLE/CHASSIS MOUNT, REGULATED, ONE UP ISOLATED CONTROL CHA
Deep-Dive with AI
Search across all available documentation for this part.
15FL24-24W-I/O-M
ActiveISOLATED DC/DC CONVERTERS - CHASSIS MOUNT FL-SERIES FLOATING-HOT-DECK POWER SUPPLY, TRIPLE OUTPUT, 15KV HV ISOLATION, +24VDC INPUT, +24VDC PRIMARY OUTPUT, -15/+5.6VDC SECONDARY OUTPUTS, 24W, THRU-HOLE/CHASSIS MOUNT, REGULATED, ONE UP ISOLATED CONTROL CHA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 15FL24-24W-I/O-M |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cUL, UL, CE |
| Current - Output (Max) | 10 mA, 1 A |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 14-DIP Module |
| Power (Watts) | 24 W |
| Size / Dimension [x] | 5.7 " |
| Size / Dimension [x] | 144.8 mm |
| Size / Dimension [y] | 1.5 in |
| Size / Dimension [y] | 38.1 mm |
| Size / Dimension [z] | 29.8 mm |
| Size / Dimension [z] | 1.18 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 15000 VDC |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | -15 V |
| Voltage - Output 3 | 5.6 V |
15FL12 Series
Isolated DC/DC Converters - Chassis Mount FL-Series Floating-Hot-Deck power supply, Triple output, 15kV HV isolation, +12Vdc input, +12Vdc primary output, -15/+5.6Vdc secondary outputs, 12W, Thru-hole/Chassis mount, Regulated, One up isolated control cha
| Part | Voltage - Input (Min) [Min] | Power (Watts) | Package / Case | Approval Agency | Voltage - Output 2 | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Number of Outputs | Mounting Type | Voltage - Input (Max) [Max] | Applications | Voltage - Output 3 | Type | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ULTRAVOLT / Advanced Energy | 21.6 V | 24 W | 28-DIP Module | CE cURus | -15 V | 15000 VDC | 38.1 mm | 33 mm | 1.5 in | 144.8 mm | 1.3 " | 5.7 " | 3 | Through Hole | 26.4 V | ITE (Commercial) | 5.6 V | Isolated Module | 24 V | 55 °C | -20 C | 1 A 10 mA |
ULTRAVOLT / Advanced Energy | ||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | 21.6 V | 24 W | 14-DIP Module | CE cUL UL | -15 V | 15000 VDC | 38.1 mm | 29.8 mm | 1.5 in | 144.8 mm | 1.18 in | 5.7 " | 3 | Through Hole | 30 V | ITE (Commercial) | 5.6 V | Isolated Module | 24 V | 55 °C | -20 C | 1 A 10 mA |
ULTRAVOLT / Advanced Energy | 21.6 V | 24 W | 14-DIP Module | CE cURus | -15 V | 15000 VDC | 3 | Through Hole | 26.4 V | ITE (Commercial) | 5.6 V | Isolated Module | 24 V | 55 °C | -20 C | 1 A 10 mA | ||||||
ULTRAVOLT / Advanced Energy | 11.4 V | 12 W | 14-DIP Module | CE cURus | -15 V | 15000 VDC | 3 | Through Hole | 12.6 V | ITE (Commercial) | 5.6 V | Isolated Module | 12 V | 55 °C | -20 C | 1 A 10 mA | ||||||
ULTRAVOLT / Advanced Energy | ||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | ||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | 11.4 V | 12 W | 14-DIP Module | CE cURus | -15 V | 15000 VDC | 3 | Through Hole | 12.6 V | ITE (Commercial) | 5.6 V | Isolated Module | 12 V | 55 °C | -20 C | 1 A 10 mA | ||||||
ULTRAVOLT / Advanced Energy | ||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | 12 W | 14-DIP Module | CE cUL cURus UL | -15 V | 15000 VDC | 3 | Through Hole | 12 V | ITE (Commercial) | 5.6 V | Isolated Module | 12 V | 1 A 10 mA |
