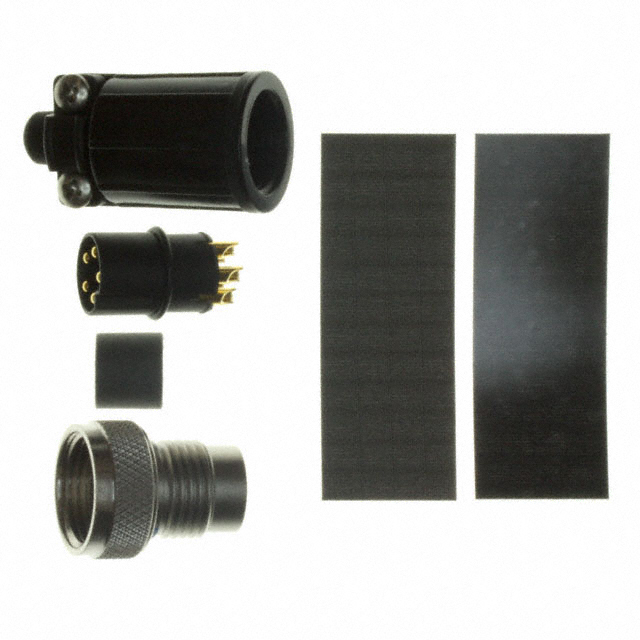

SF6382-5PG-520

Active

Conxall/Switchcraft

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF6382-5PG-520

Active

Conxall/Switchcraft

CONN PLUG MALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF6382-5PG-520

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68
Insert Material	Polyester Resin
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shielding	Shielded

SF6382 Series

Part	Insert Material	Contact Material	Shielding	Contact Finish - Mating	Ingress Protection	Orientation	Shell Material	Mounting Type	Color	Shell Finish	Features	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Number of Positions
Conxall/Switchcraft SF6382-3PG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Male Pins Plug
Conxall/Switchcraft SF6382-3SG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Female Sockets Plug
Conxall/Switchcraft SF6382-6PG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Male Pins Plug	6
Conxall/Switchcraft SF6382-5PG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Male Pins Plug
Conxall/Switchcraft SF6382-2PG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Male Pins Plug	2
Conxall/Switchcraft SF6382-6SG-520	Polyester Resin	Copper Alloy	Shielded	Gold	IP66/IP68	Keyed	Copper Alloy	Free Hanging (In-Line)	Black Silver	Nickel	Backshell Cable Clamp Coupling Nut	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Female Sockets Plug	6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.81
		10	$ 27.86
		25	$ 26.66
		50	$ 25.80
		100	$ 24.94
		250	$ 23.56

Description

General part information

SF6382 Series

5 Position Circular Connector Plug, Male Pins Solder Cup
